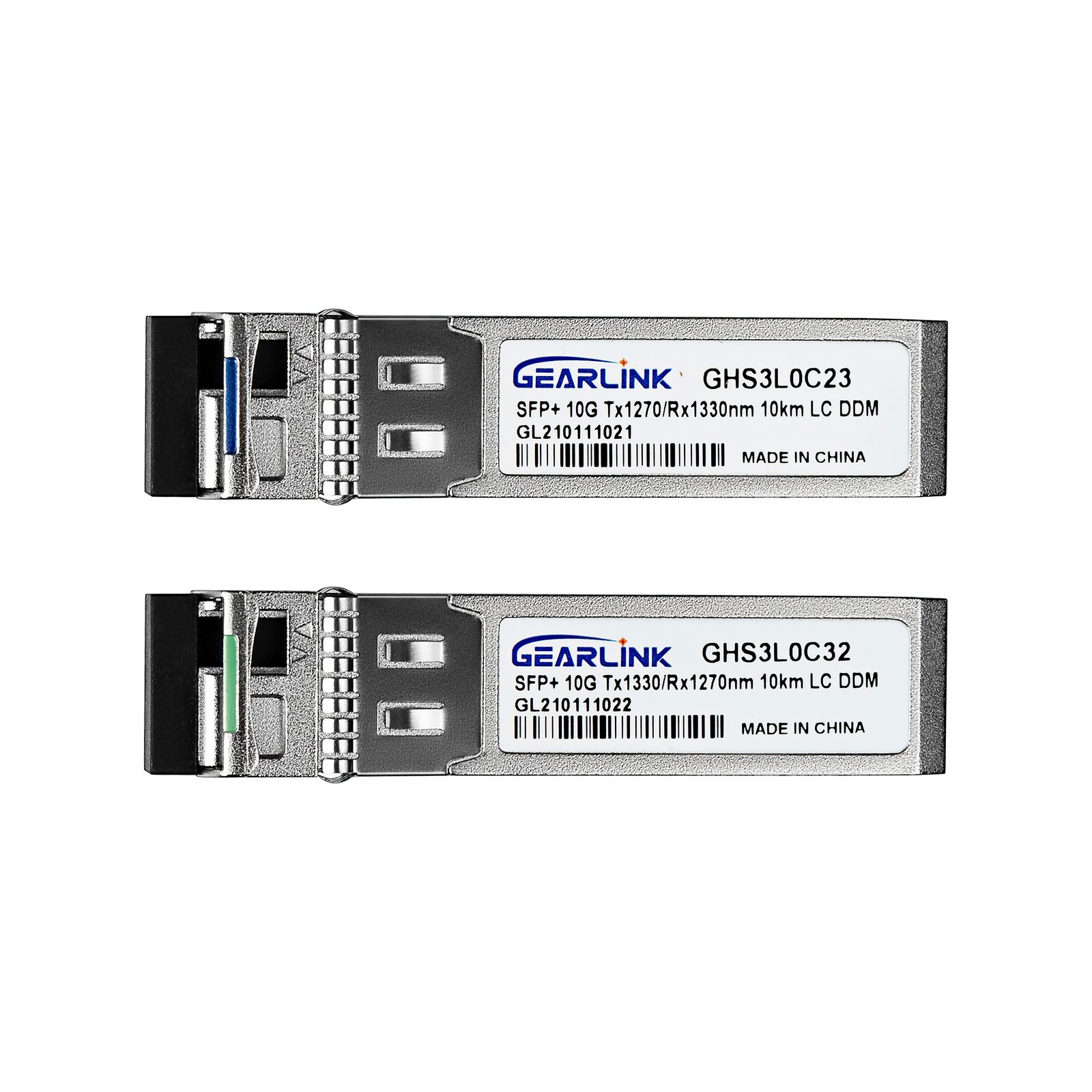

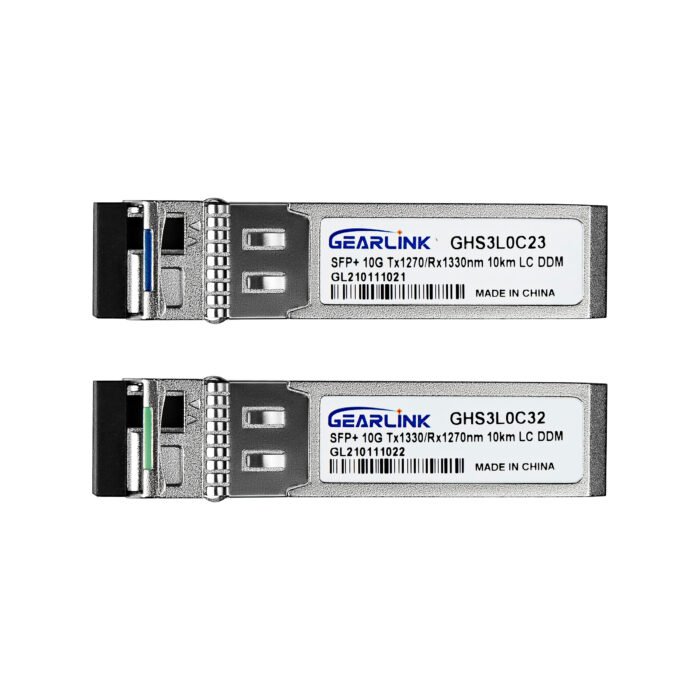

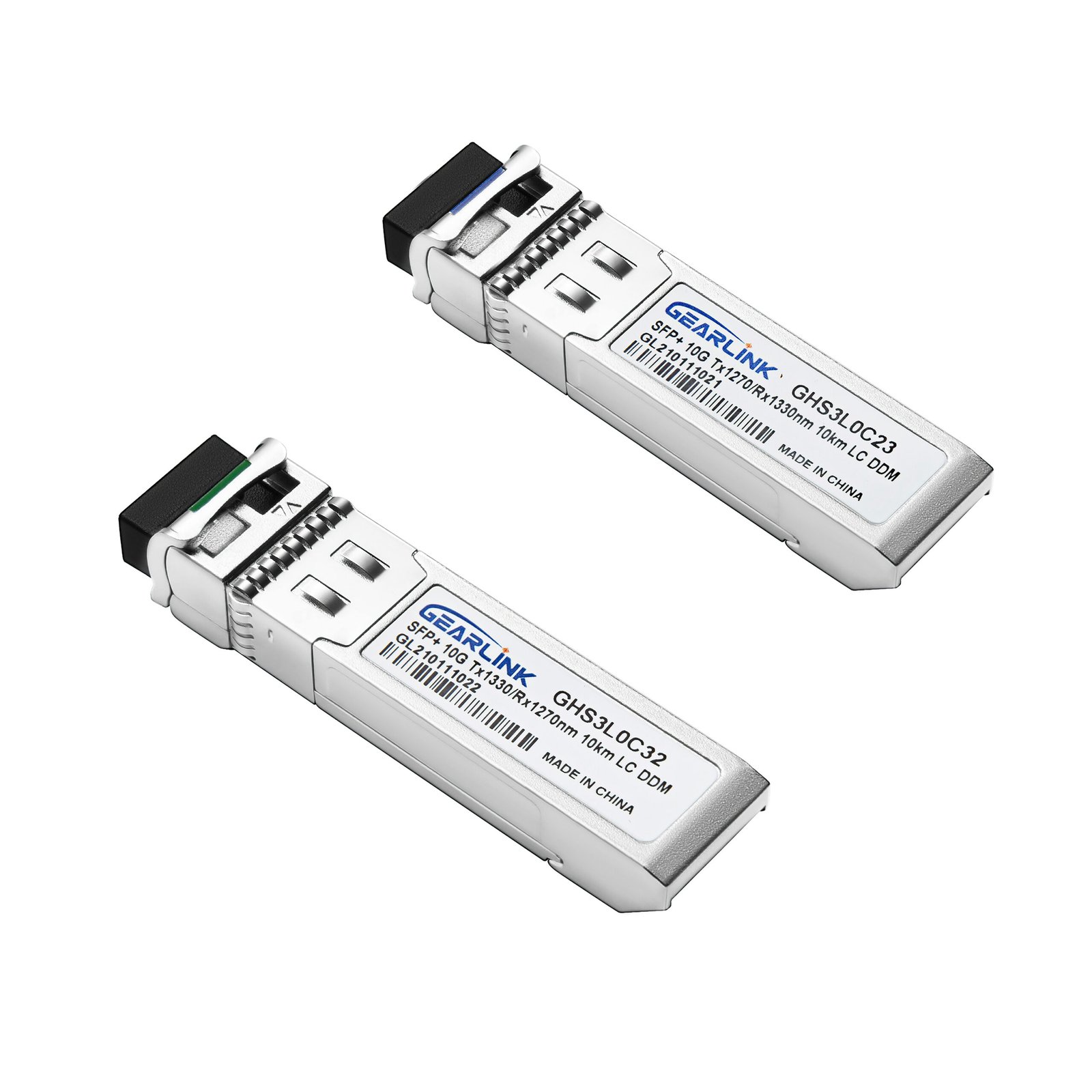

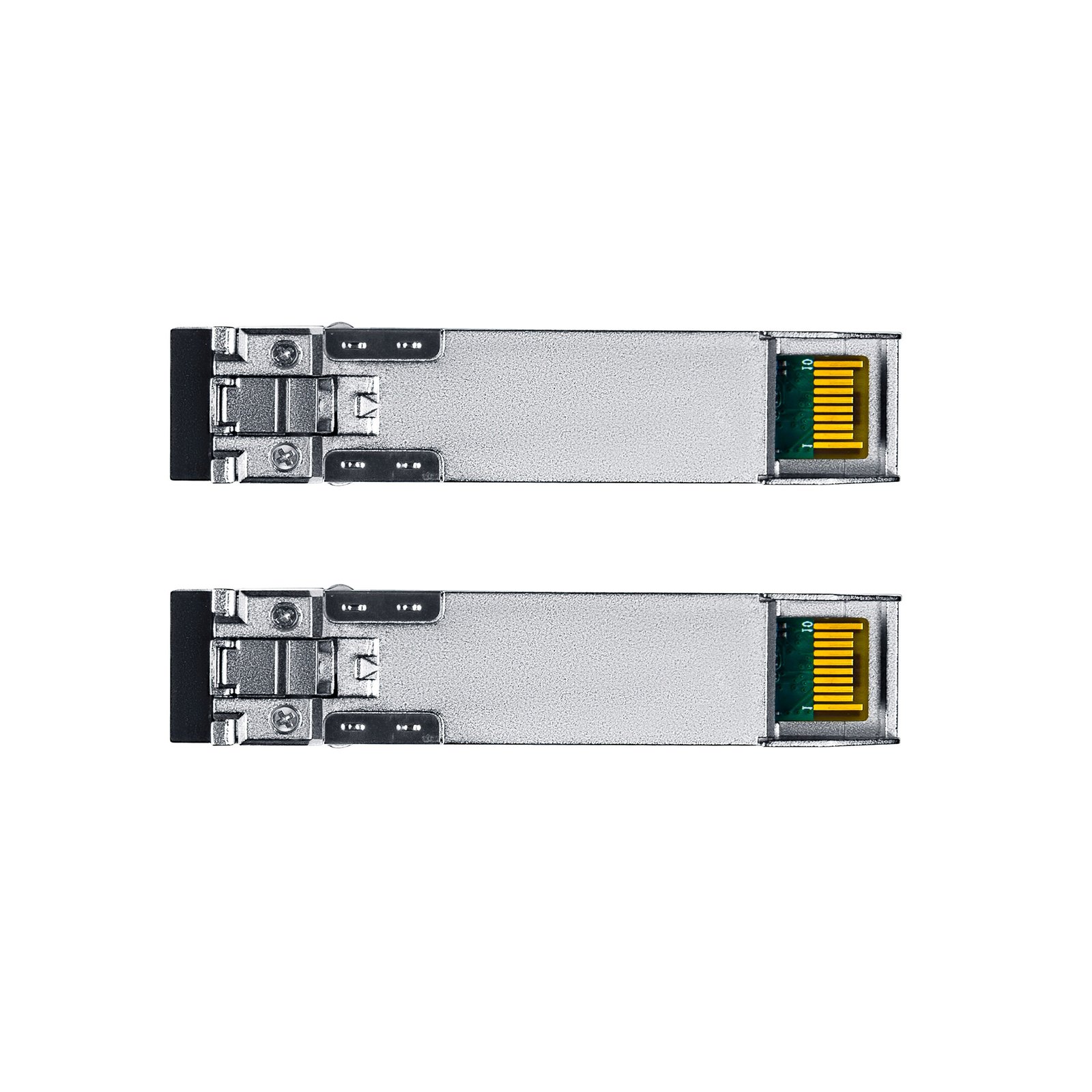

10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM Simplex LC/UPC SMF Optical Transceiver Module
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The 10GBASE-BX10-U BiDi SFP+ is a 1270nm-TX / 1330nm-RX optical transceiver designed for high-speed 10Gbps data transmission over single-mode fiber (SMF). It features a Simplex LC/UPC connector and supports distances up to 10km with DOM (Digital Optical Monitoring) functionality. This module is specifically designed to work in pairs with the BiDi SFP+ 1330nm-TX / 1270nm-RX transceiver, ensuring efficient bidirectional communication over a single fiber strand. Ideal for data centers, enterprise networks, and telecom applications, it offers cost-effective, reliable performance with reduced fiber infrastructure requirements.
| Brand | WHGEARLINK |
|---|---|
| Description | SFP+ 10G Tx1270/Rx1330 10Km LC |
| Data Rate | 10G |
| Package | SFP+ |
| Wavelength (nm) | Tx1270nm/Rx1330nm |
| Reach | 10km |
| Connector | LC |
| Operating Voltage | 3.3V |
| TX output （dBm） | -6 ～-1 |
| RX Sensitivity （dBm） | -14.4 |
| Power Consumption（W） | <1W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Cable Type | SMF |
| Warranty | 3 Years |
Be the first to review “10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM Simplex LC/UPC SMF Optical Transceiver Module”
Operating data rate Up to 11.3Gbps
Two types:
A:1270nmDFB transmitter /1330nm receiver
B:1330nm DFB transmitter/1270nm receiver
Power budget 9dB at least
Single +3.3V power supply and TTL Logic Interface
LC Connector Interface
Hot Pluggable
Power Dissipation < 1.5W
Built-in digital diagnostic functions, including optical power monitoring
Commercial Temperature Range: 0~+70℃
Compliant with SFP+ MSA Specification SFF-8431
Compliant with IEEE 802.3ae 10GBASE-LR
Compliant with IEEE 802.3ae 10GBASE-LW
