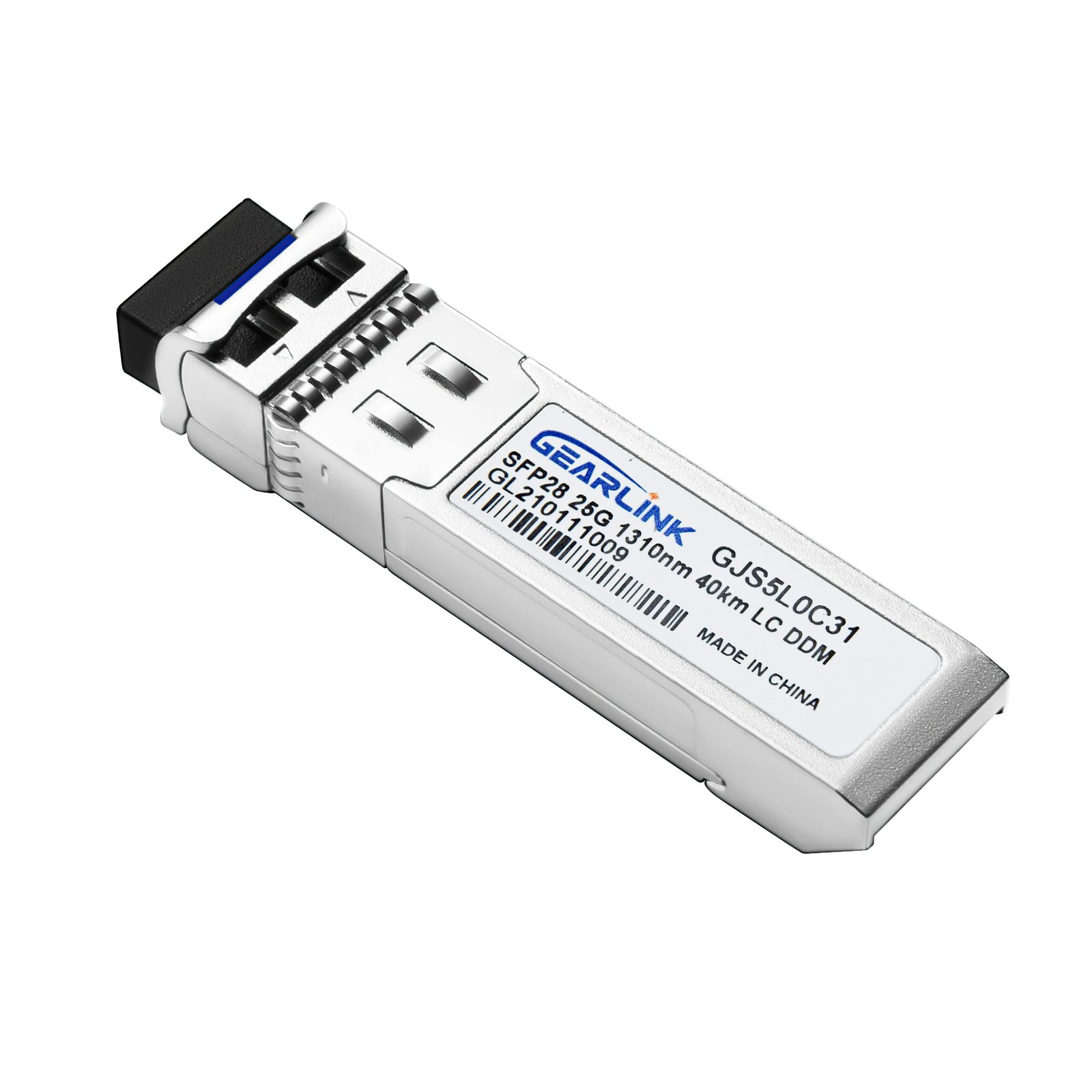

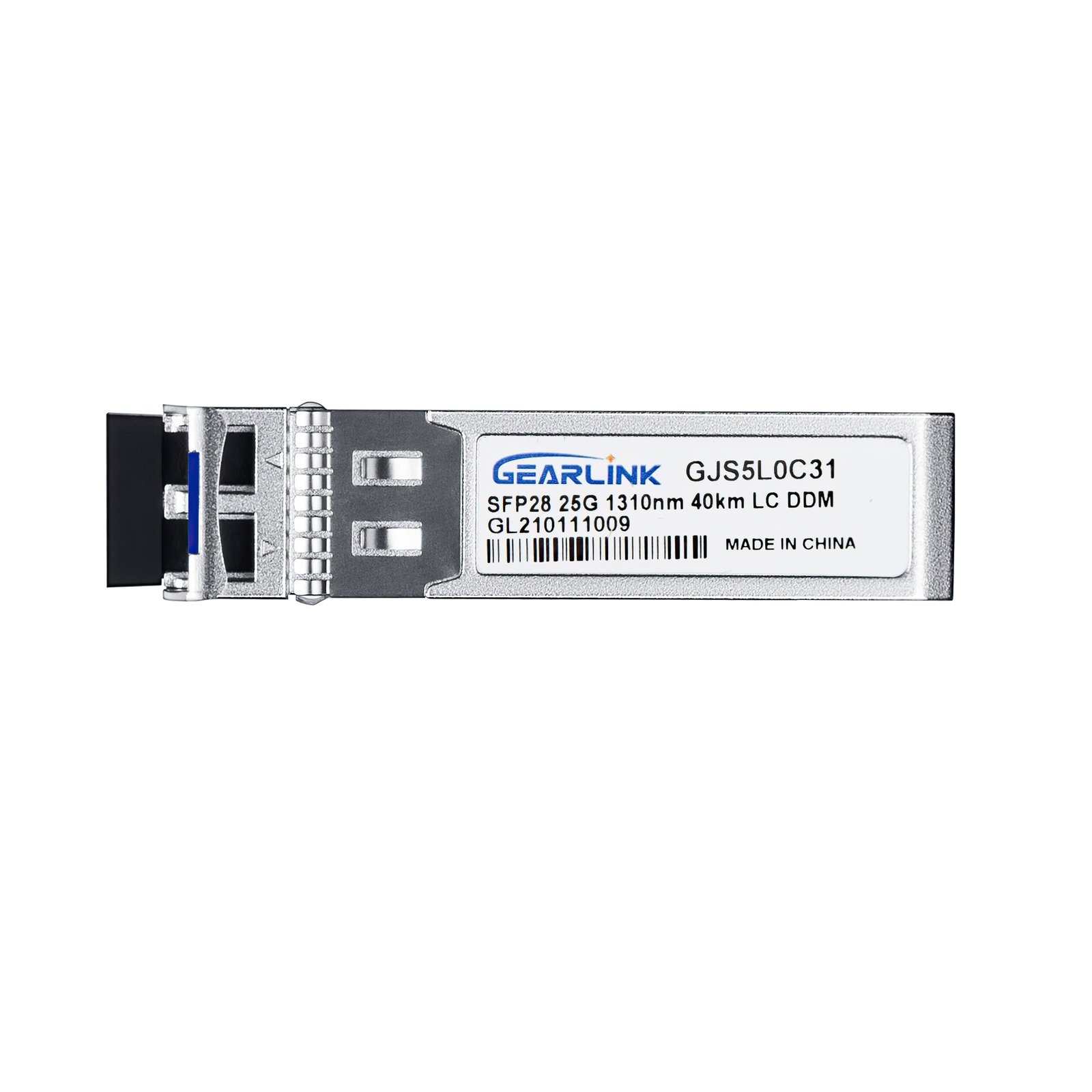

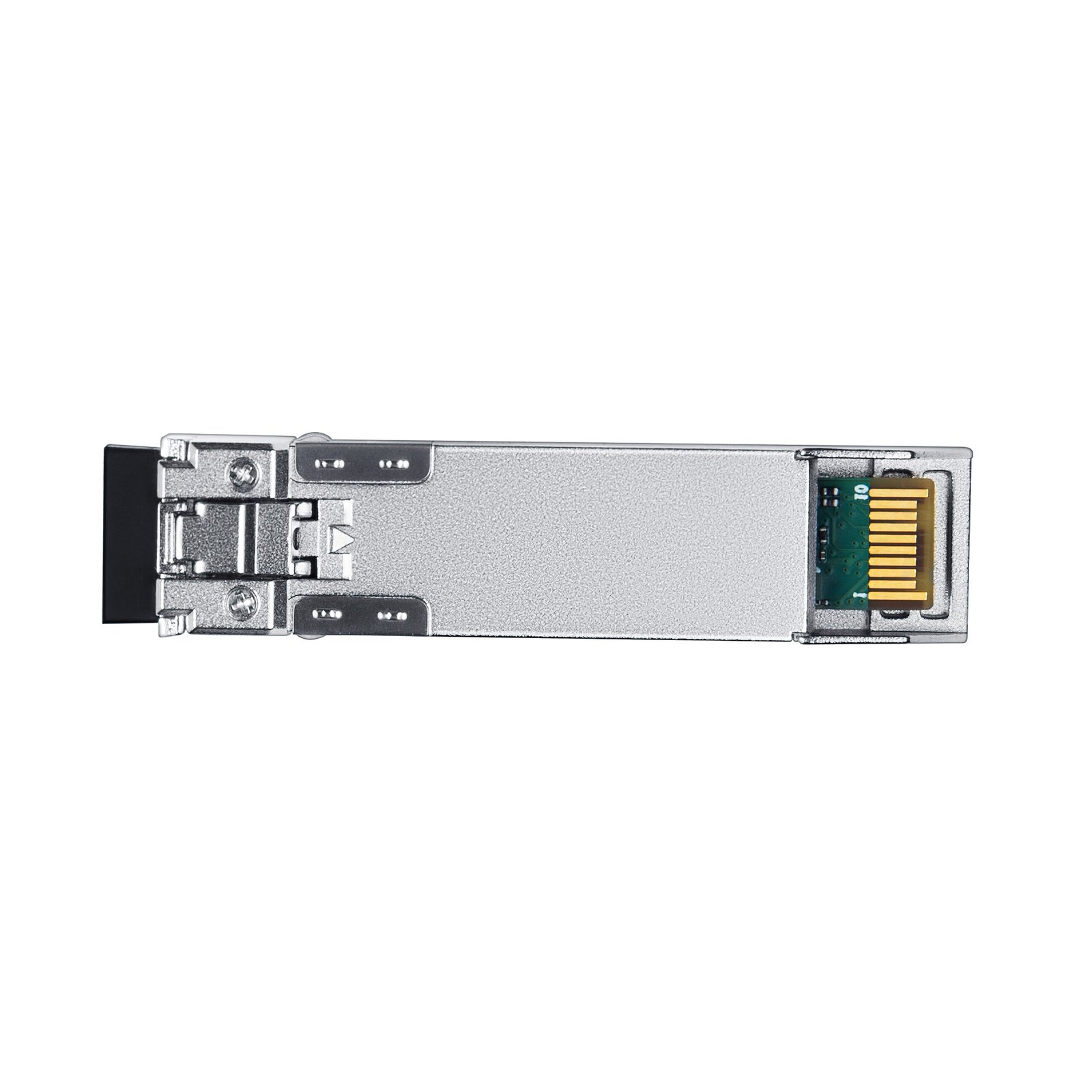

25GBASE-ER SFP28 1310nm 40km DOM Duplex LC/UPC SMF Optical Transceiver Module
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The 25GBASE-ER SFP28 1310nm 40km DOM Duplex LC/UPC SMF Optical Transceiver Module is a high-performance optical transceiver designed for long-distance, high-speed data transmission. Operating at a 25 Gbps data rate, this transceiver is capable of transmitting data up to 40 kilometers over single-mode fiber (SMF), making it ideal for a range of demanding applications that require extended reach and reliable performance. Its 1310nm wavelength ensures efficient and low-loss transmission, even at extended distances, while maintaining high data integrity.
The 25GBASE-ER SFP28 1310nm 40km DOM Duplex LC/UPC SMF Optical Transceiver Module offers long-range, high-speed, and reliable optical connectivity for demanding applications. Its ability to transmit data over 40 kilometers with low loss, along with its compact form factor and real-time monitoring capabilities, makes it a key component for expanding high-performance networks and maintaining scalable, efficient communications.
| Brand | WHGEARLINK |
|---|---|
| Description | SFP28 25G 1310nm 40km DDM LC |
| Data Rate | 25G |
| Package | SFP28 |
| Wavelength (nm) | 1310nm |
| Reach | 40km |
| Connector | LC |
| Operating Voltage | 3.3V |
| TX output （dBm） | -1.6 ～6 |
| RX Sensitivity （dBm） | -19.6 |
| Power Consumption（W） | <1.8W |
| DOM | Yes |
| Warranty | 3 Years |
Be the first to review “25GBASE-ER SFP28 1310nm 40km DOM Duplex LC/UPC SMF Optical Transceiver Module”
Hot-pluggable SFP28 form factor
Up to 30Km reach for G.652 SMF without FEC
Up to 40Km reach for G.652 SMF with FEC
Internal CDR on both Transmitter and Receiver channel
Transmitter: cooled 25Gb/s LAN WDM EML TOSA
(1286.66,1291.10,1295.56,1300.05,1304.58,1309.14nm)
Receiver: 25Gb/s APD ROSA
Single 3.3V power supply
Power dissipation < 2W
Commercial case temperature range: 0°C to 70°C
Duplex LC receptacle
Digital diagnostics functions are available via the I2C interface
RoHS-6 compliant
