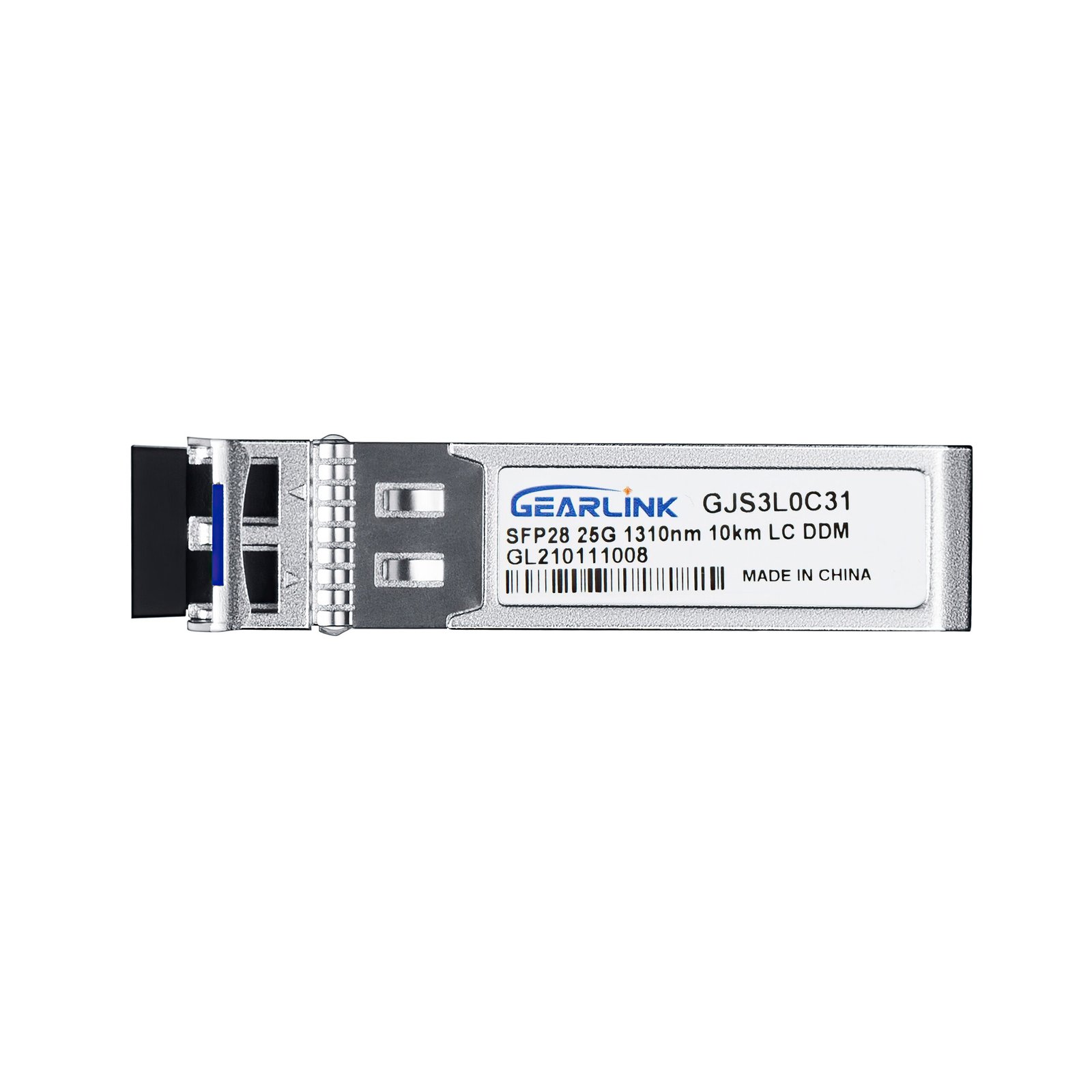

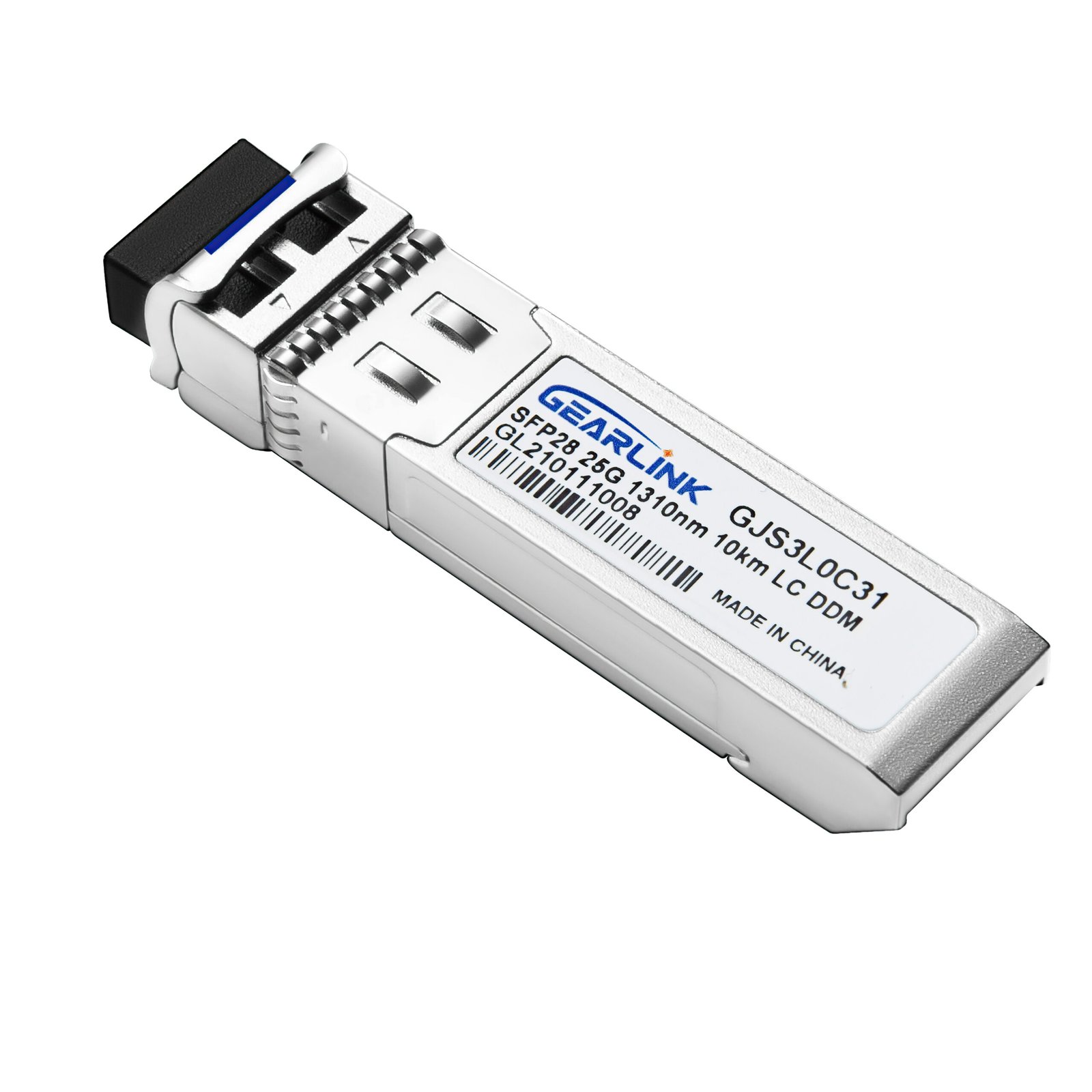

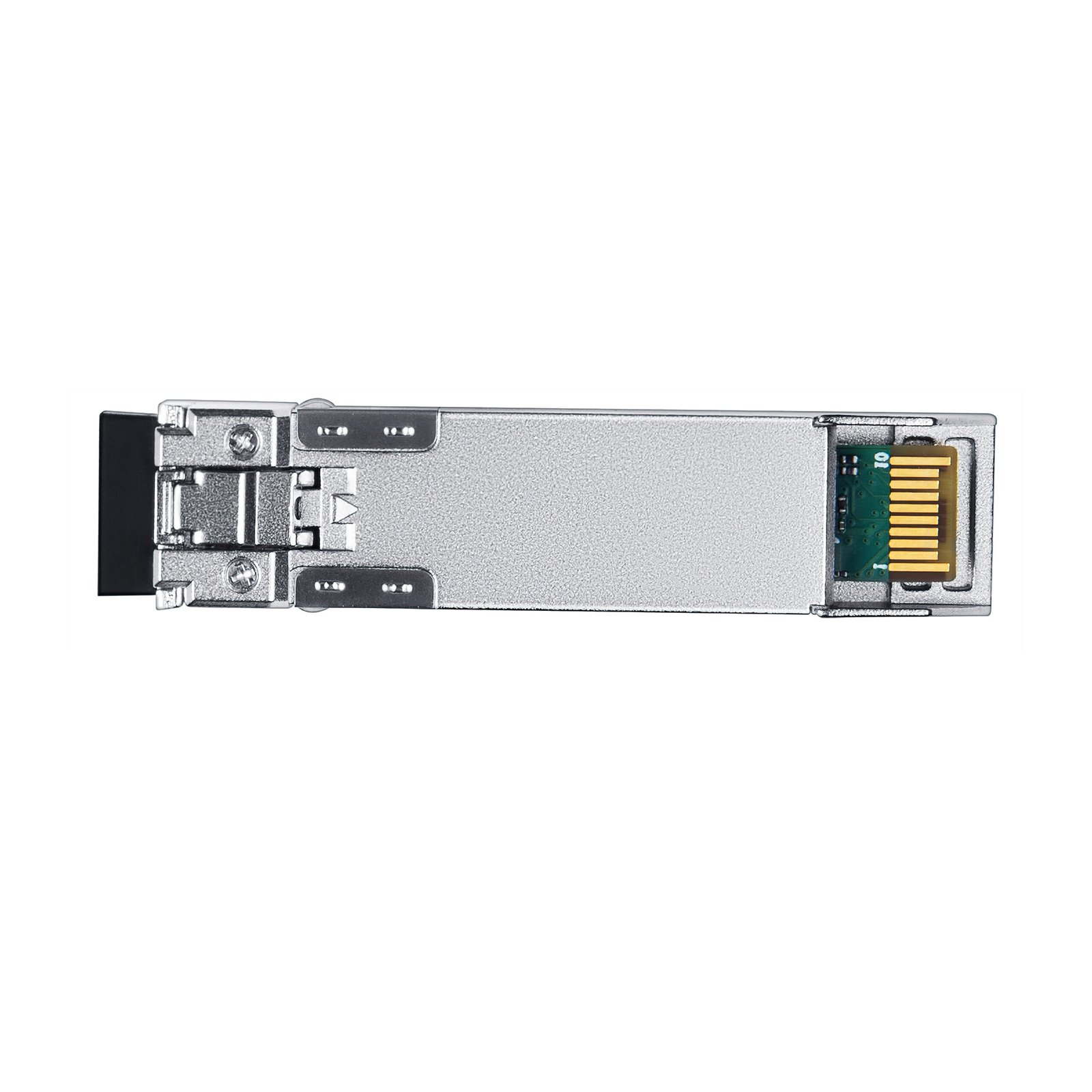

25GBASE-LR-S SFP28 1310nm 300m DOM Duplex LC/UPC SMF Optical Transceiver Module
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The 25GBASE-LR SFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module is designed to provide high-speed data transmission for modern networking and telecommunications systems. With a data rate of 25 Gbps, this optical transceiver ensures superior performance, reliability, and efficiency for a variety of long-distance applications. Operating over single-mode fiber (SMF), this module supports transmission distances of up to 10 kilometers, making it a perfect choice for large-scale data center interconnects, enterprise networks, and telecommunications infrastructure.
The 25GBASE-LR SFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module is a high-performance, reliable, and scalable solution for high-bandwidth applications, offering long-distance connectivity and efficient data transmission in modern networking environments. Its robust features and wide application range make it a vital component for any advanced network infrastructure.
| Brand | WHGEARLINK |
|---|---|
| Description | SFP28 25G 1310nm 10km DDM LC |
| Data Rate | 25G |
| Package | SFP28 |
| Wavelength (nm) | 1310nm |
| Reach | 10km |
| Connector | LC |
| Operating Voltage | 3.3V |
| TX output （dBm） | -5 ～2 |
| RX Sensitivity （dBm） | -14 |
| Power Consumption（W） | <1W |
| DOM | Yes |
| Warranty | 3 Years |
Be the first to review “25GBASE-LR-S SFP28 1310nm 300m DOM Duplex LC/UPC SMF Optical Transceiver Module”
Up to 24.33Gb/s for CPRI
Up to 25.78Gb/s for bi-directional data links
Electrical interface specifications per SFF-8431
Management interface specifications per SFF-8432 and SFF-8472
Build-in dual CDR with shut off control
SFP28 MSA package with duplex LC connector
Uncooled 1310nm DFB Laser
Up to 10 km on 9/125um SMF
Single +3.3V power supply
Class 1 laser safety certified
1.0W maximum power consumption with established link
Operating temperature Options:
Commercial：0℃ to 70℃;
Industrial：-40℃ to 85℃
RoHS Compliant
