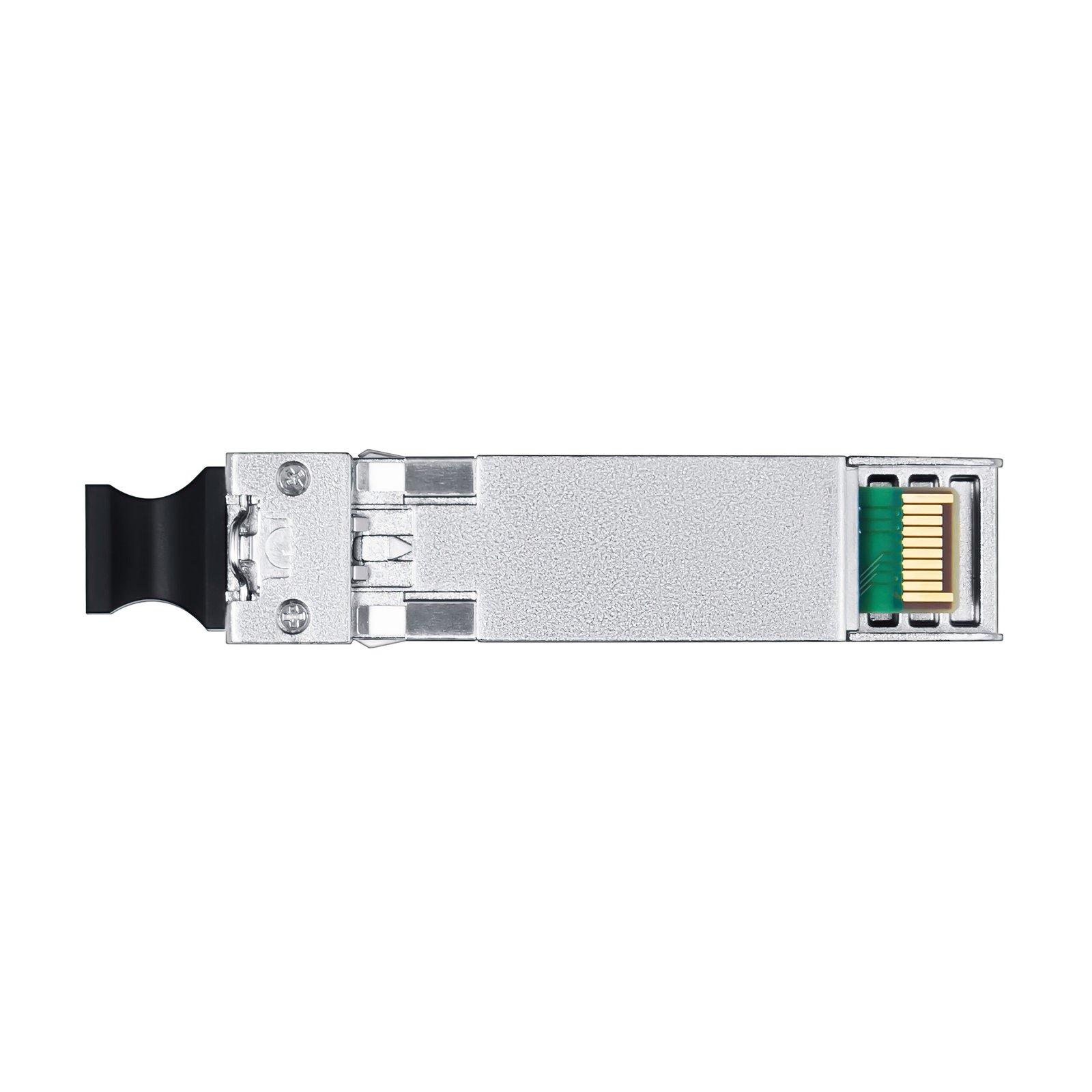

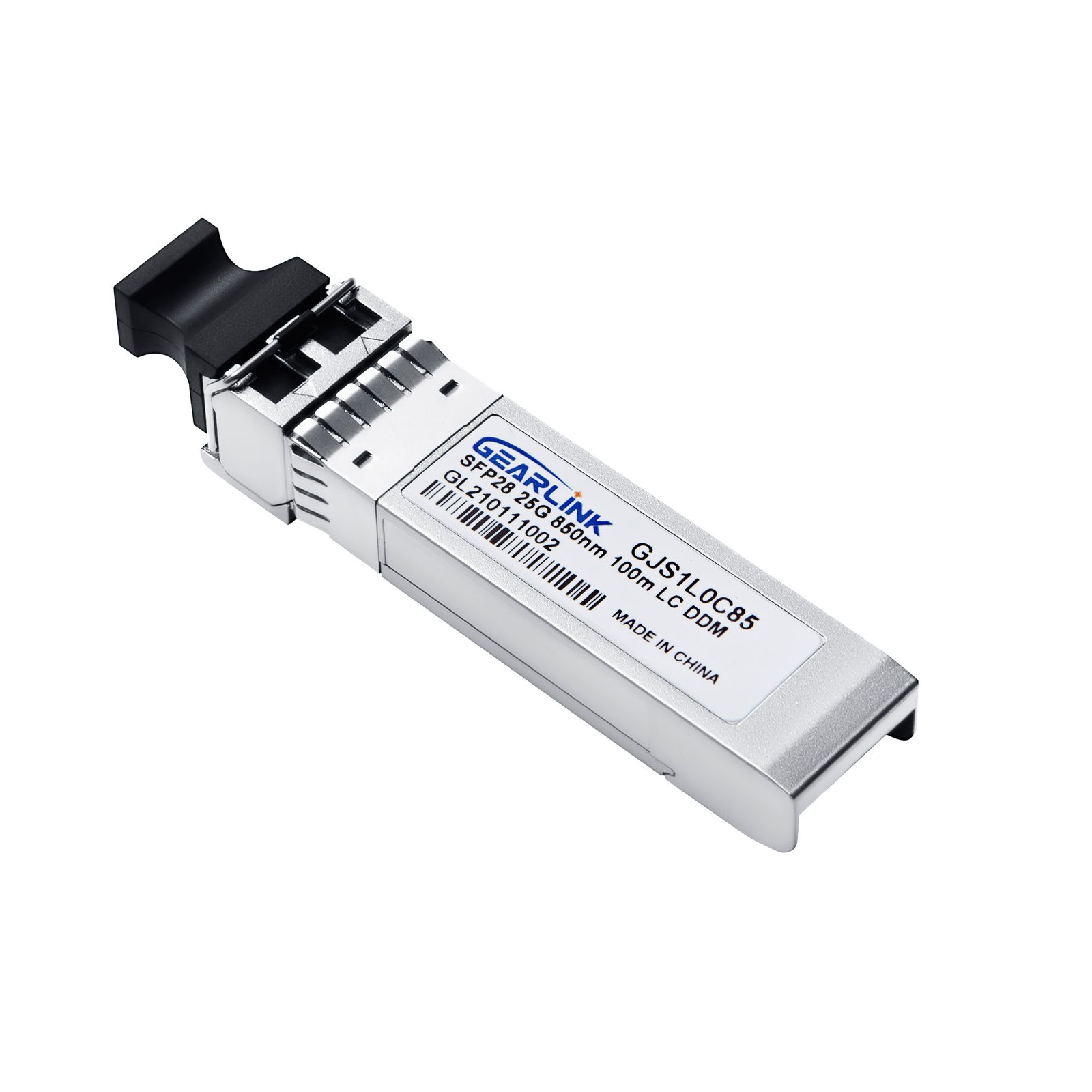

25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The 25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module is a high-performance 25Gbps optical transceiver designed for multimode fiber (MMF) networks. Operating at a wavelength of 850nm, this transceiver is optimized for short-range transmission, offering a maximum reach of 100 meters over OM4 multimode fiber with Duplex LC/UPC connectors.
This 25GBASE-SR SFP28 transceiver is a cost-effective and reliable solution for short-range 25Gbps networking, offering the performance needed for next-generation data center and enterprise applications.
| Brand | WHGEARLINK |
|---|---|
| Description | SFP28 25G 850nm 100m DDM LC |
| Data Rate | 25G |
| Package | SFP28 |
| Wavelength (nm) | 850nm |
| Reach | 100m |
| Connector | LC |
| Operating Voltage | 3.3V |
| TX output （dBm） | -9.1～2.4 |
| RX Sensitivity （dBm） | -11 |
| Power Consumption（W） | <1W |
| DOM | Yes |
| Warranty | 3 Years |
Be the first to review “25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module”
Operating data rate support 25.2Gbps to 28.1Gbps
Compliant with IEEE 802.3
Compliant with FC-PI-6
Compliant with SFF-8402
Compliant with SFF-8419
Compliant with SFF-8432
Compliant with SFF-8472
Clock data recovery on transmit and receive channels CDR
Hot-pluggable SFP+ footprint
850nm VCSEL laser transmitter
Duplex LC connector
Built-in digital diagnostic functions
Up to 70m on OM3 MMF and 100m on OM4 MMF
Single power supply 3.3V
RoHS-6 Compliant
Operating temperature range: 0◦C to 70◦C(Case temperature)
