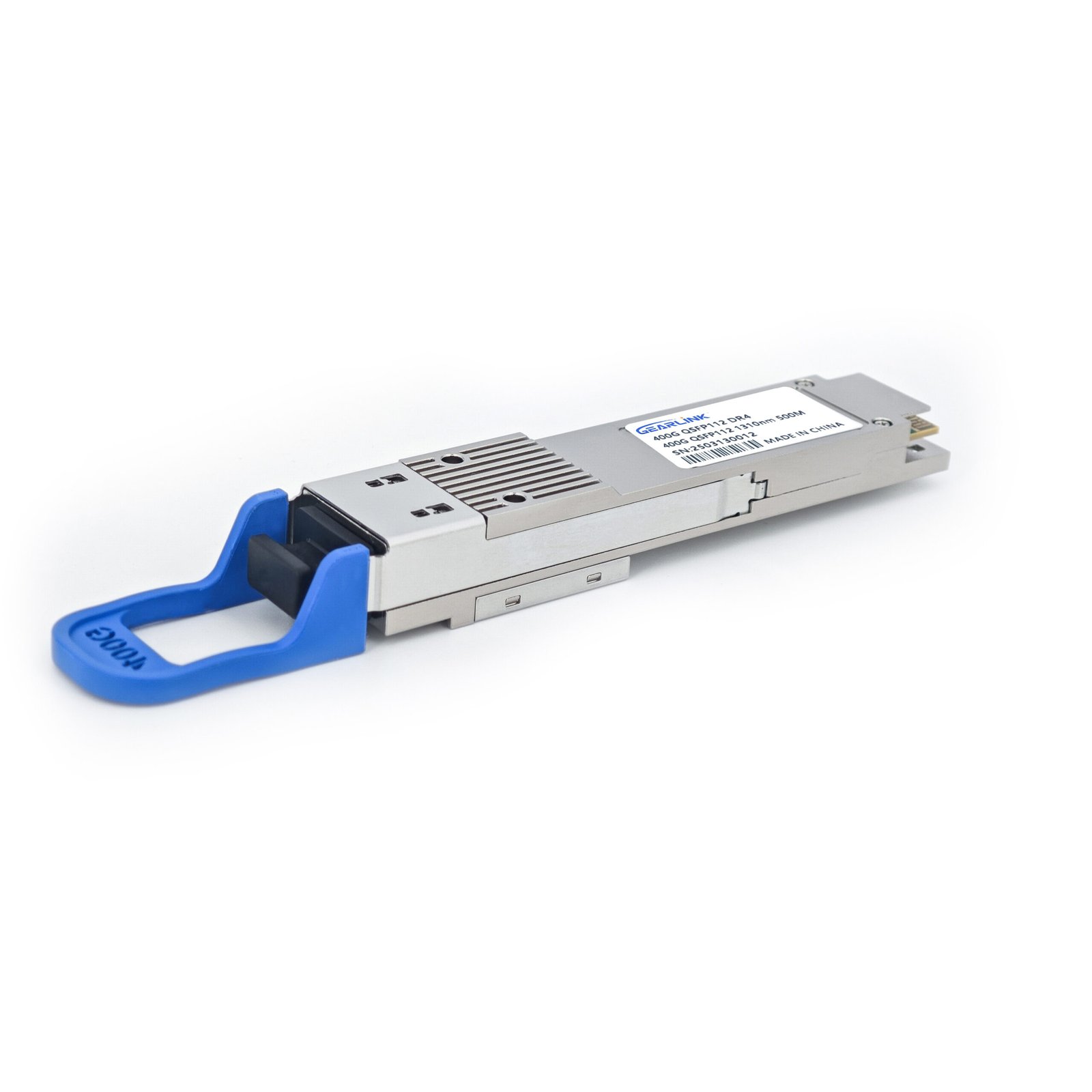

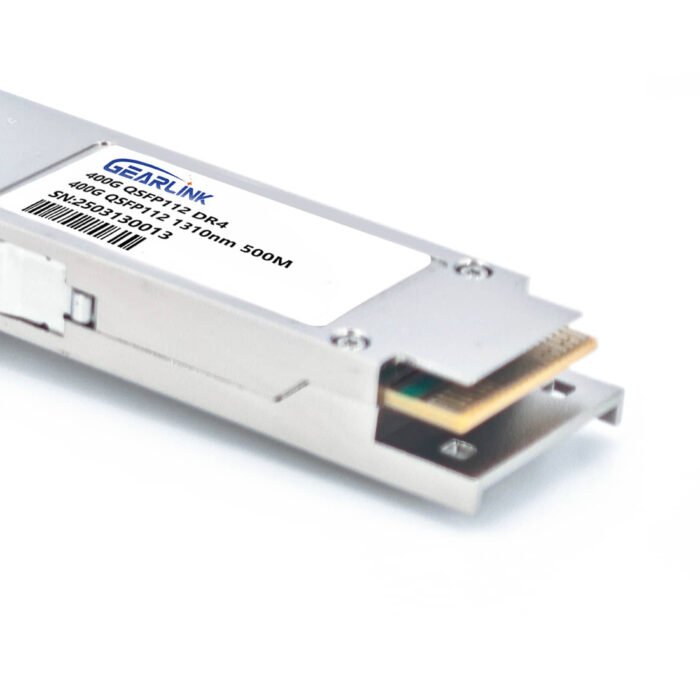

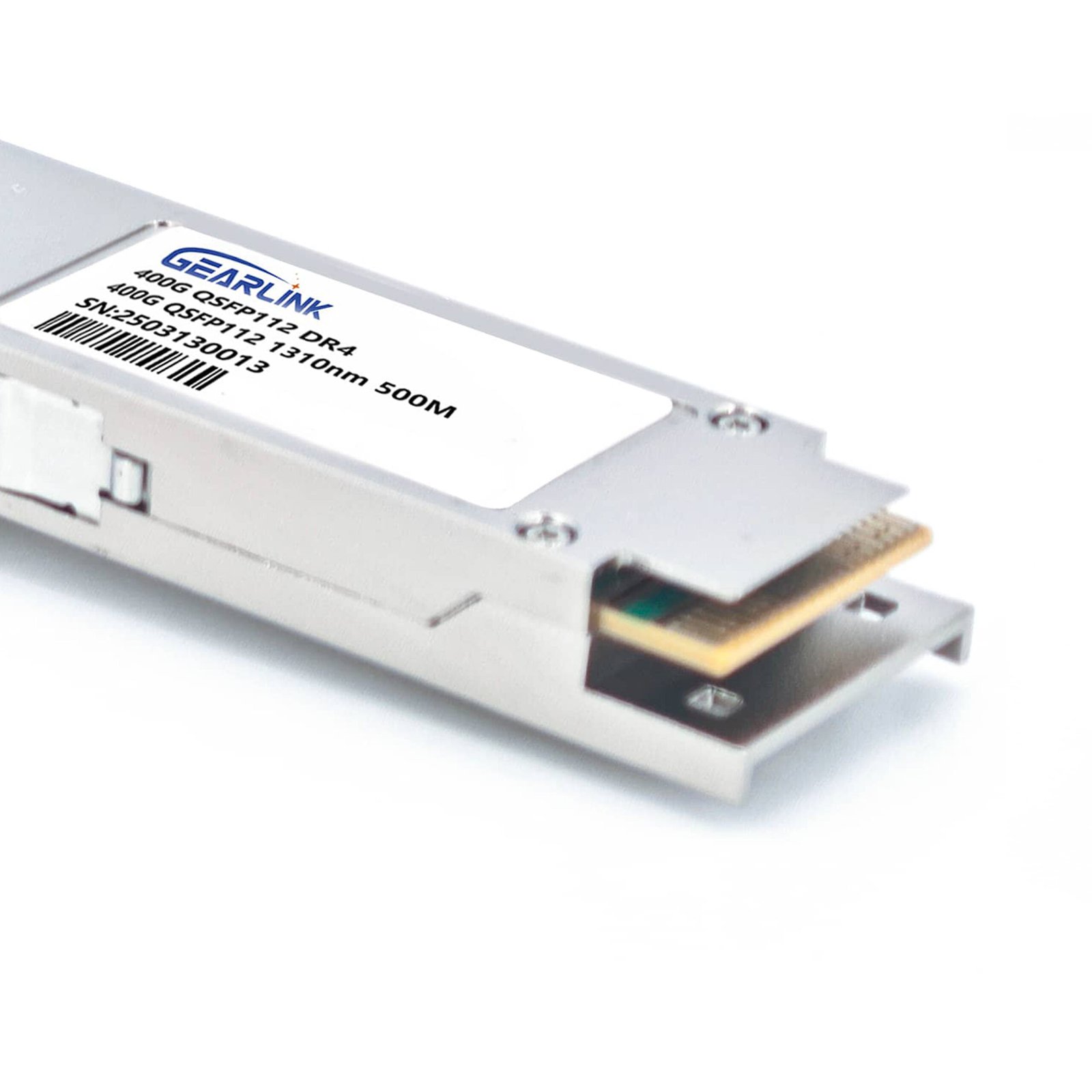

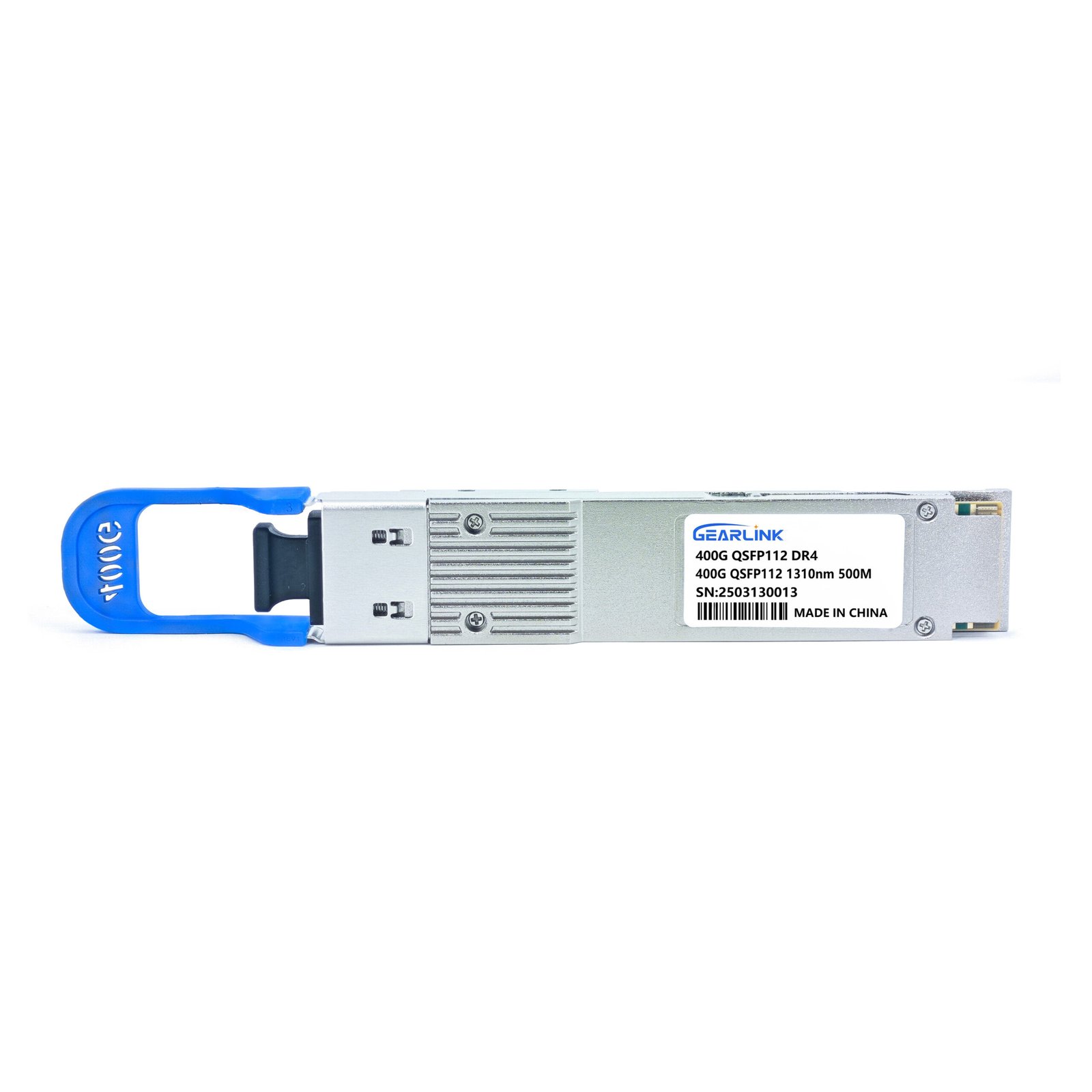

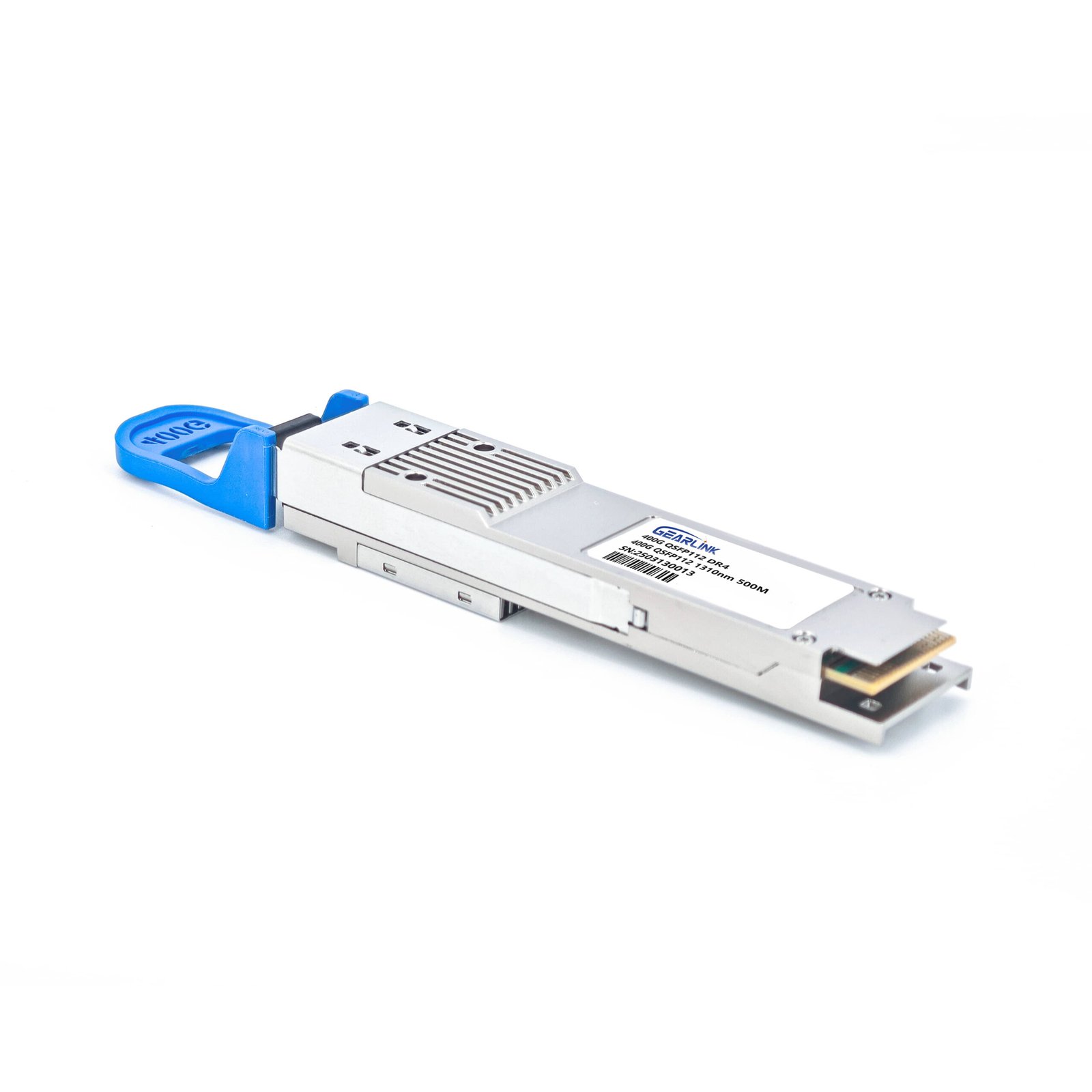

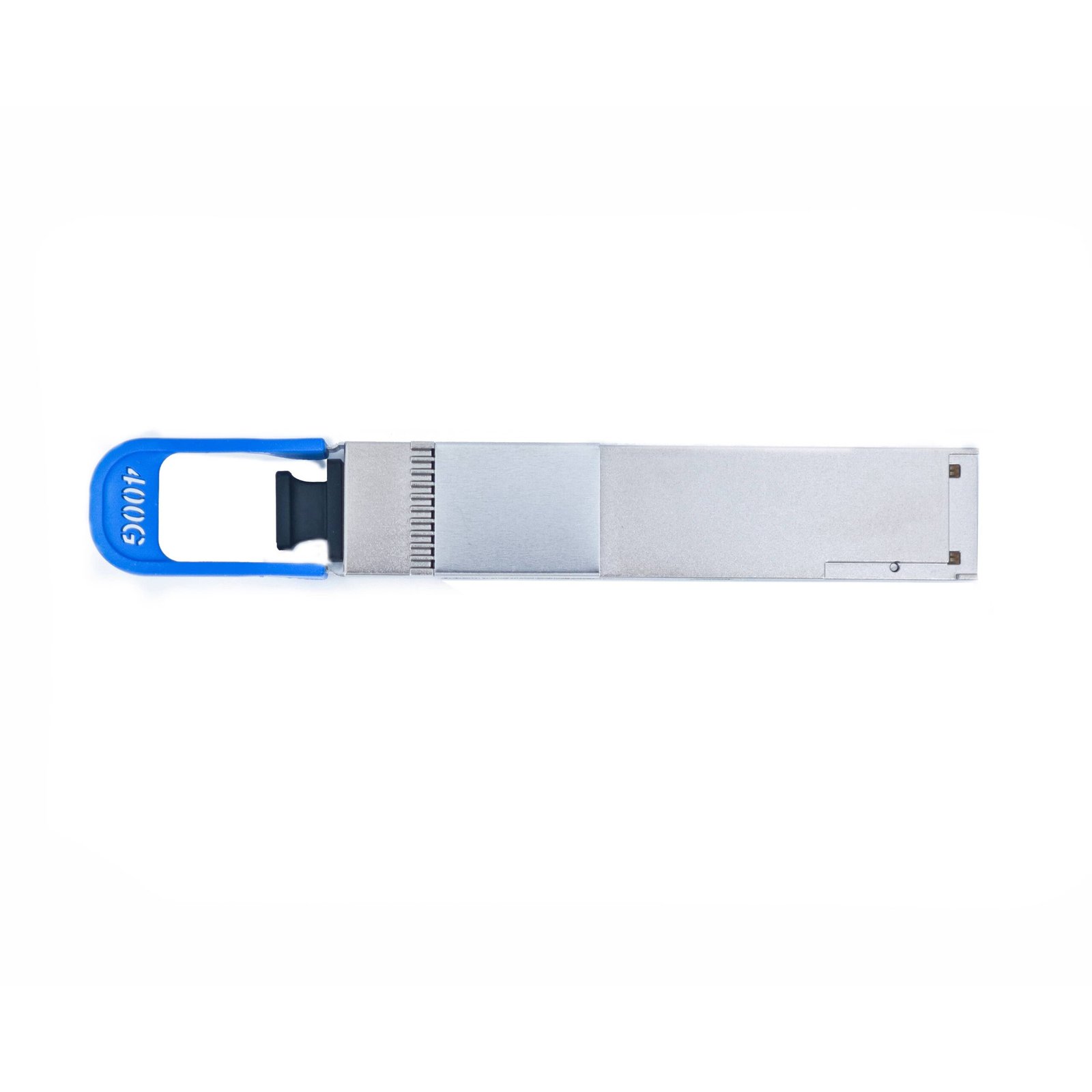

400GBASE-DR4 QSFP112 PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The 400GBASE-DR4 QSFP112 PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module is engineered for high-speed data center interconnects and enterprise network applications that require reliable and efficient data transmission. This module operates at a data rate of 400Gb/s and employs advanced PAM4 modulation technology, which increases data density by encoding four distinct signal levels within a single transmission channel. This method maximizes bandwidth utilization while maintaining signal integrity, even in environments where channel noise is a concern.
Utilizing a 1310nm laser, the module is optimized for single-mode fiber (SMF) applications. The 1310nm wavelength not only ensures compatibility with existing SMF infrastructures but also supports transmission distances of up to 500 meters. This extended reach is achieved through careful optical design that balances power output with controlled signal attenuation, making the module suitable for various data center layouts and campus network configurations where longer fiber spans are required.
A prominent feature of this optical transceiver is its integrated Digital Optical Monitoring (DOM) capability. DOM provides real-time monitoring of essential operational parameters, including optical power levels, temperature, and supply voltage. This functionality is critical for maintaining network performance, as it allows network administrators to quickly identify and address potential issues before they affect overall system reliability. By continuously monitoring these parameters, the module ensures that the optical link operates within optimal conditions.

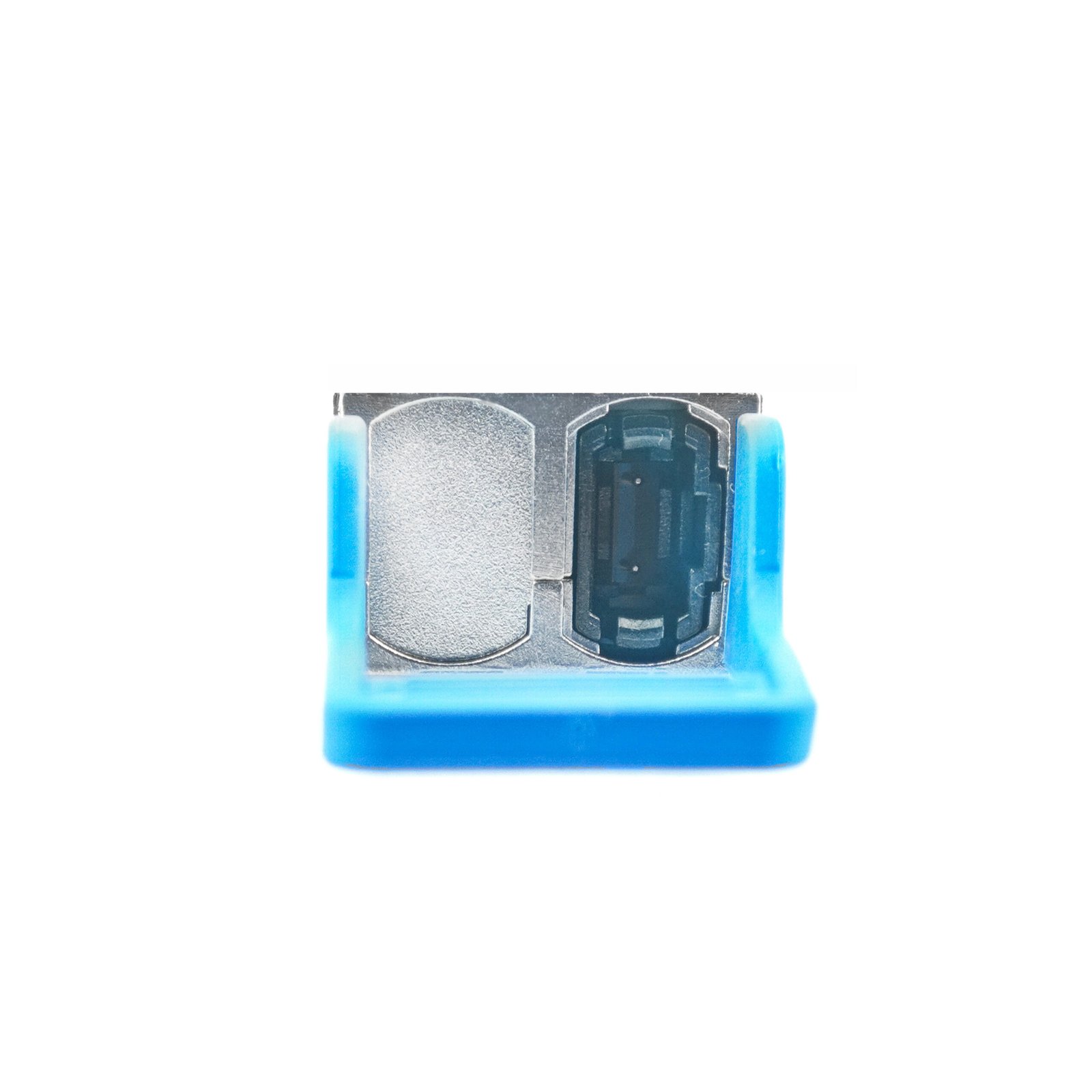

Compliance with industry standards is another key aspect of this design. The module supports MSA specifications and adheres to CMIS 5.2, ensuring seamless integration with a wide range of network equipment. The MPO-12/APC connector interface is designed to deliver secure and low-loss connectivity, which simplifies installation and improves overall system performance. Additionally, the QSFP112 form factor supports high port density, making it an efficient solution for modern data centers that require compact, high-performance components.
The 400GBASE-DR4 QSFP112 PAM4 optical transceiver module delivers practical performance for demanding network environments. Its robust technical design, emphasis on reliability through DOM, and compatibility with standard SMF systems make it a sound choice for network operators seeking to achieve high-speed, stable connections over extended distances without unnecessary embellishment.
| Brand | WHGEARLINK |
|---|---|
| Description | QSFP112 400G 1310nm 500m MPO-12APC |
| Data Rate | 400G |
| Package | QSFP112 |
| Wavelength (nm) | 1310nm |
| Reach | 500m |
| Connector | MPO |
| Operating Voltage | 3.3V |
| TX output （dBm） | -2.9~4.0 |
| RX Sensitivity （dBm） | -5.9 |
| Power Consumption（W） | 10 |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| DOM | Yes |
What are the main categories of 400G optical transceivers?
Based on transmission distance and application scenarios, 400G optical transceivers are mainly categorized into SR8 (short-range), DR4 (medium-range), FR4 (medium-long range), and LR4 (long-range).
What are the common packaging types for 400G optical transceivers?
Common packaging types for 400G optical transceivers include QSFP-DD, OSFP, and QSFP112. Among these, QSFP-DD and OSFP are widely used due to their high density and excellent heat dissipation performance.
What are the main application areas of 400G optical transceivers?
400G optical transceivers are primarily used in data centers, high-performance computing, and communication networks, meeting the demands for high bandwidth and high-speed data transmission.
What is a QSFP-DD packaged 400G optical transceiver?
QSFP-DD (Quad Small Form-factor Pluggable Double Density) is a dual-density, four small form-factor pluggable package that supports data transmission rates up to 400Gbps, suitable for high-density network environments.
What is the transmission distance range for 400G optical transceivers?
Depending on the type, the transmission distance ranges from 100 meters (SR8) to 10 kilometers (LR4), covering the needs from short-range to long-range transmissions.
How do 400G optical transceivers meet the demands of data centers?
By providing high bandwidth and high-density connections, 400G optical transceivers support the high-speed transmission of massive amounts of data within data centers, improving overall network performance.
What role do 400G optical transceivers play in communication networks?
In communication networks, 400G optical transceivers are used to build high-capacity transmission links to meet the growing network traffic demands.
What is the power consumption of 400G optical transceivers?
The power consumption of 400G optical transceivers typically ranges from 8W to 12W, depending on the module type and application scenario.
What types of interfaces do 400G optical transceivers have?
Common interface types include MPO and LC, with the specific choice depending on the module type and application requirements.
What is the transmission rate of 400G optical transceivers?
400G optical transceivers have a transmission rate of 400Gbps, meeting the requirements for high-bandwidth applications.
What is the working temperature range of 400G optical transceivers?
The typical working temperature range is from 0°C to 70°C, though the specific range may vary depending on the module type and application scenario.
What are the dimensions of 400G optical transceivers?
The dimensions vary by packaging type. For example, the QSFP-DD package measures 90mm x 18.35mm x 8.5mm.
What transmission media do 400G optical transceivers use?
They mainly use single-mode fiber and multi-mode fiber, with the choice depending on the transmission distance and application needs.
What modulation technique is used in 400G optical transceivers?
400G optical transceivers typically use PAM4 (Pulse Amplitude Modulation with four levels) technology to improve data transmission efficiency.
How compatible are 400G optical transceivers?
Designed to comply with relevant standards, 400G optical transceivers ensure compatibility with equipment from different vendors.
How reliable are 400G optical transceivers?
Through rigorous testing and certification, 400G optical transceivers are designed to ensure stability and reliability under various environmental conditions.
What is the cost of 400G optical transceivers?
As the technology matures and production scales up, the cost of 400G optical transceivers has been gradually decreasing, leading to better cost-effectiveness.Where are 400G optical transceivers mainly used?
Data Centers: With the explosive growth in data traffic, data centers require higher bandwidth and faster transmission speeds. 400G optical transceivers meet the needs for large-scale data transmission and processing by providing high-density and high-speed connectivity.
