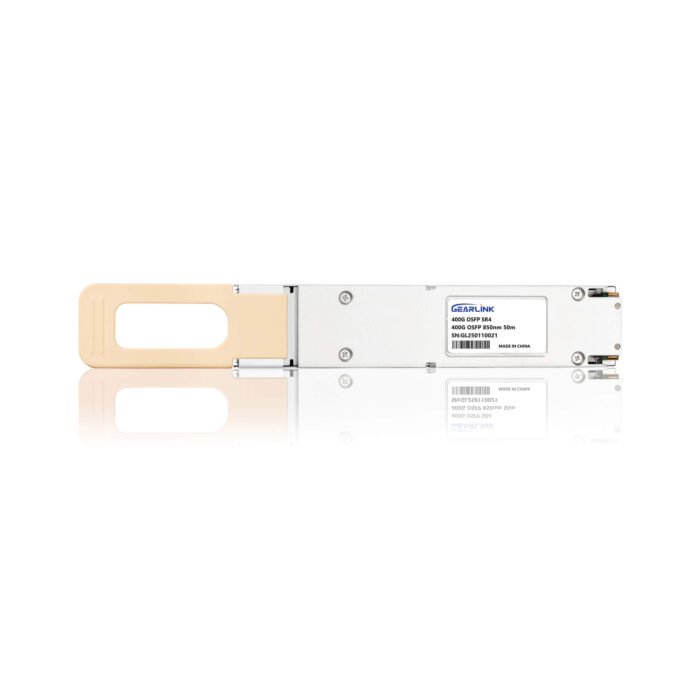

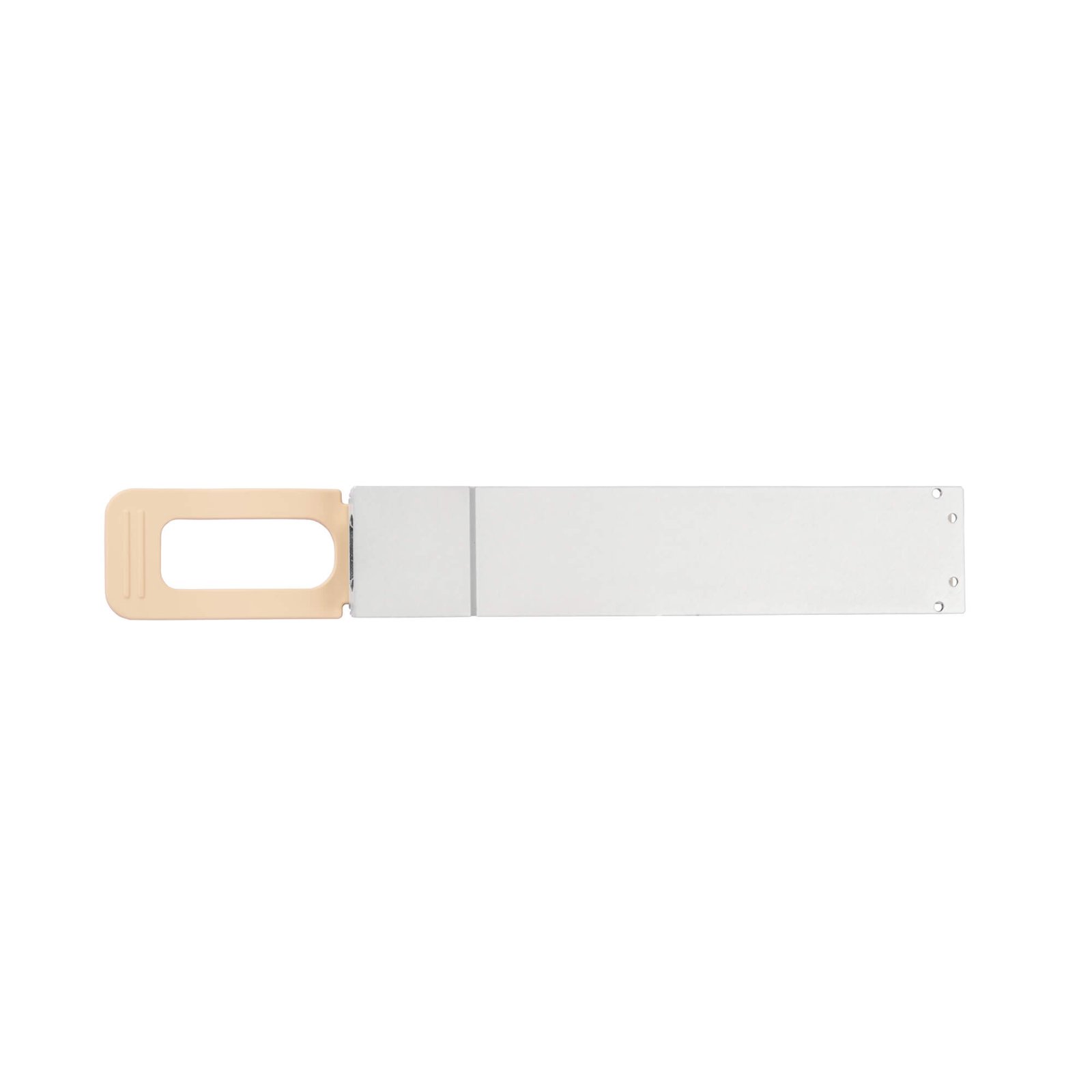

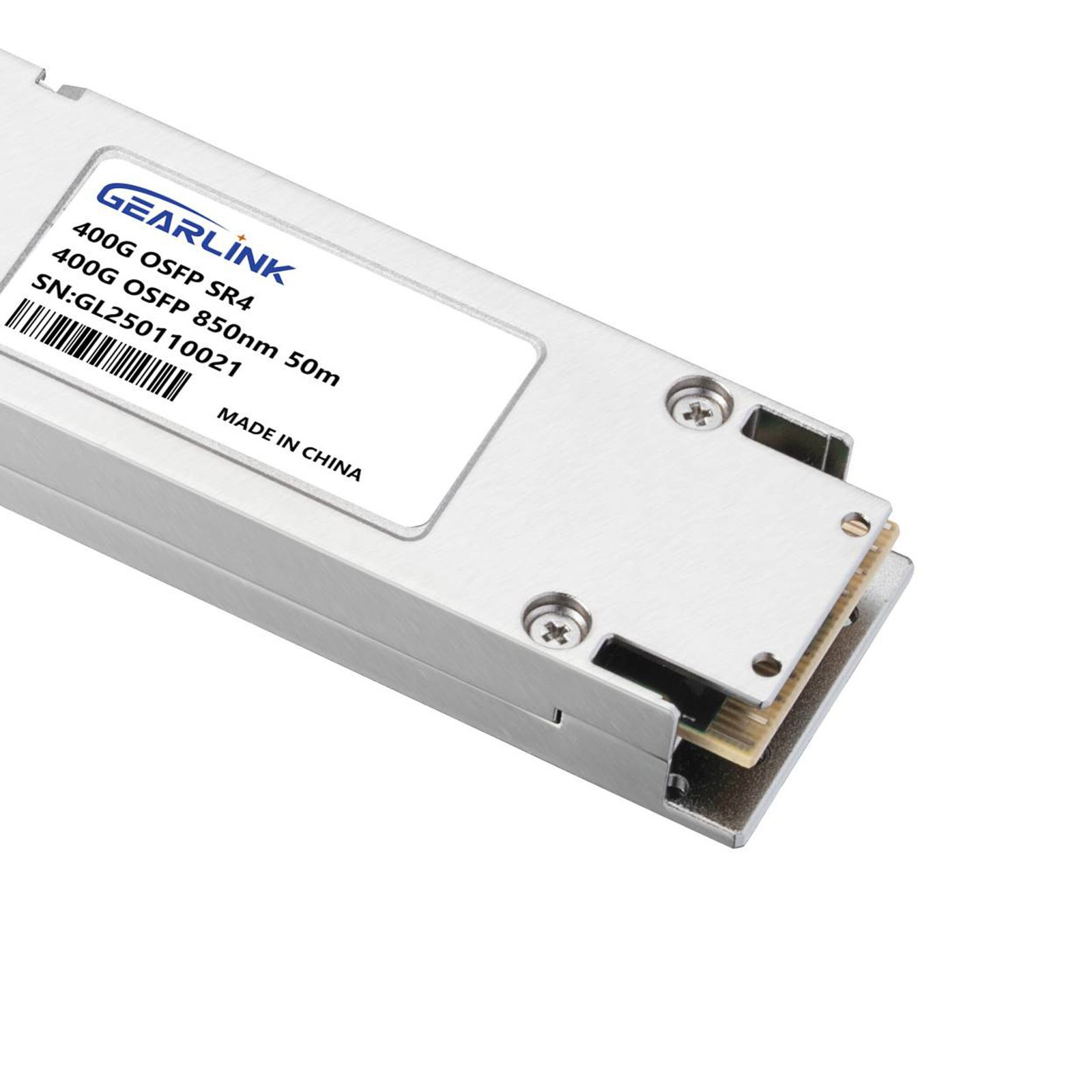

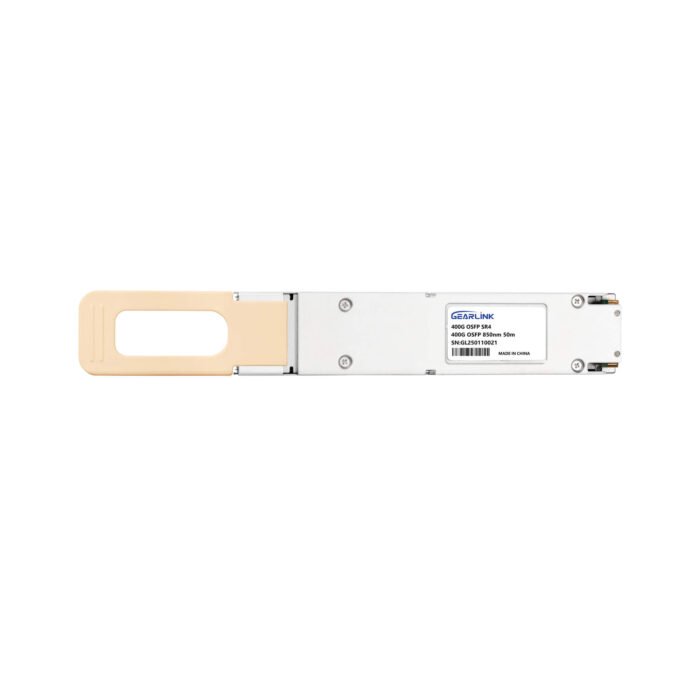

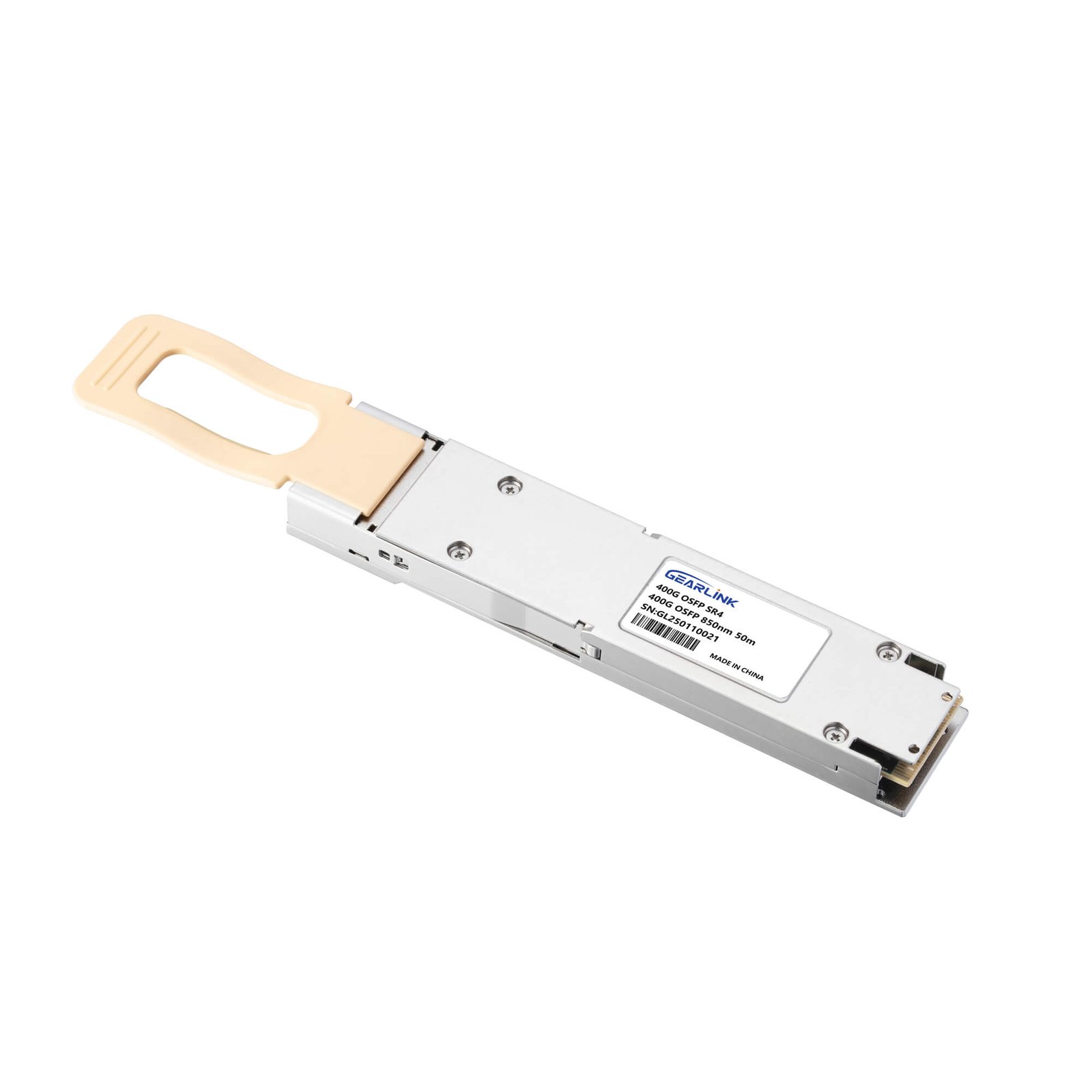

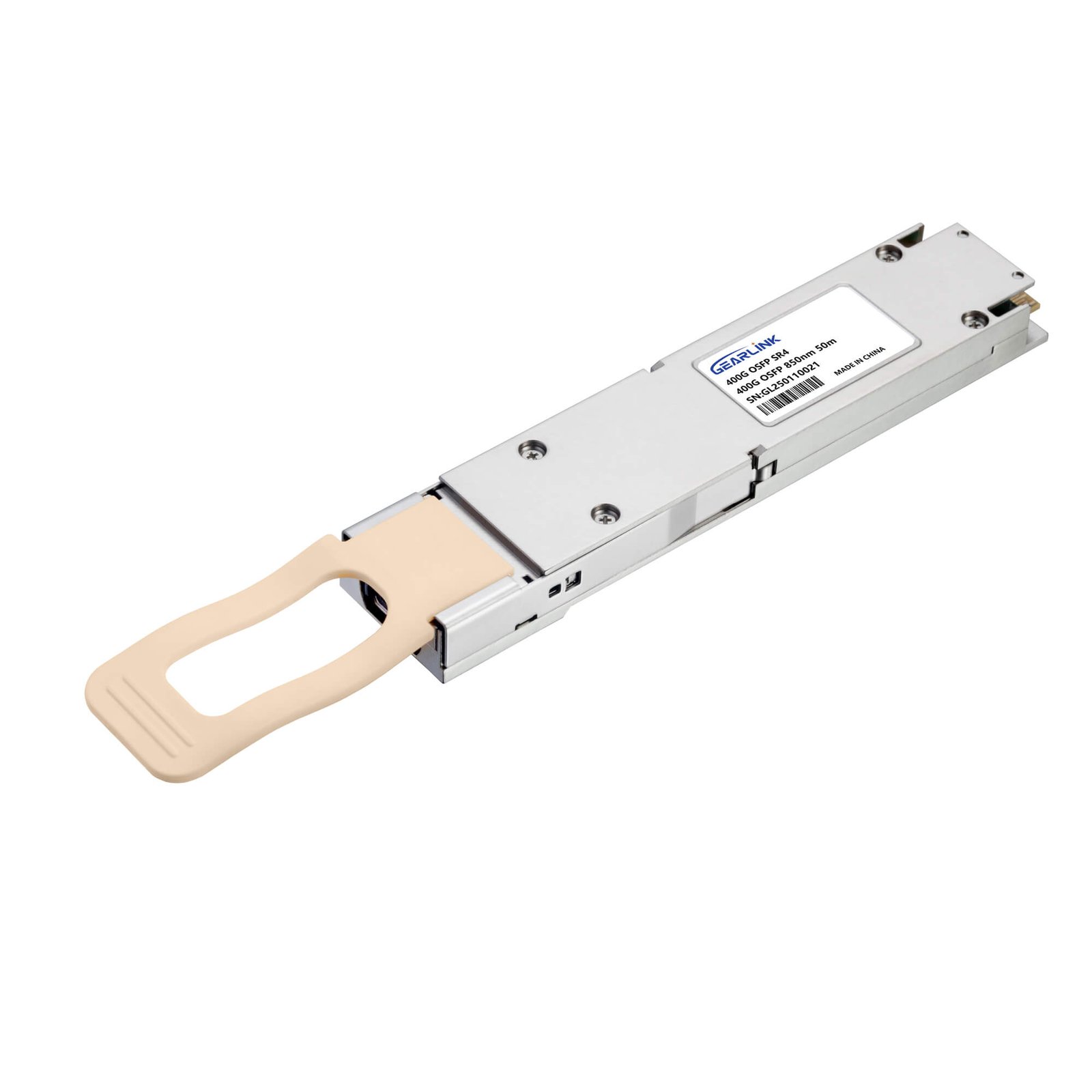

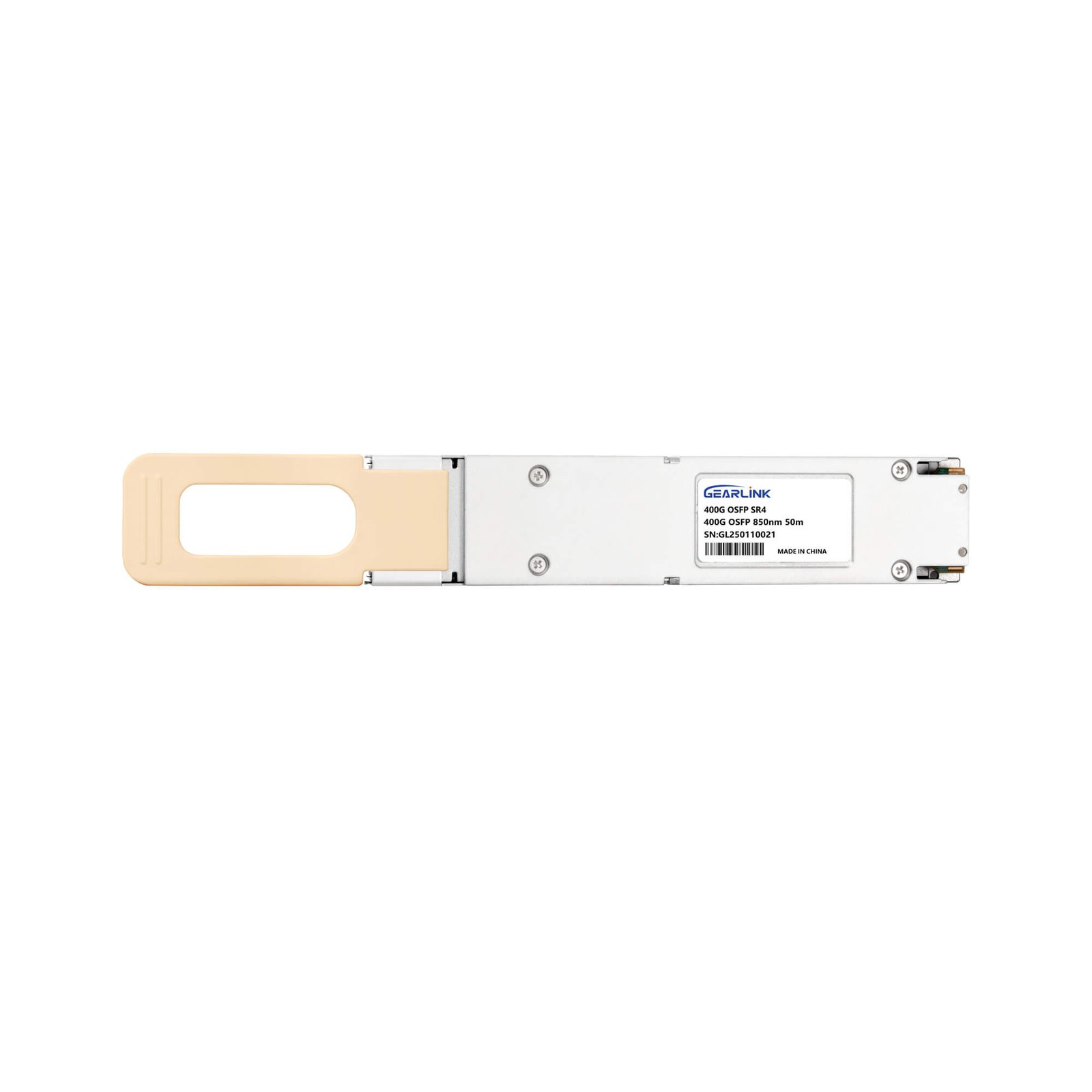

400GBASE-SR4 OSFP 850nm 50m DOM MPO-12/APC MMF Optical Transceiver Module
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The 400GBASE OSFP Optical Module is a high-performance, cutting-edge transceiver designed for ultra-fast, high-bandwidth connections in data centers, high-performance computing (HPC), and other large-scale networking environments. This optical module is packaged in the OSFP form factor and operates using 850nm wavelength for short-range transmissions. The 400GBASE OSFP is equipped with 100G PAM4 modulation technology, which enables it to achieve high-speed data transmission with reduced signal interference and power consumption.With a low power consumption of less than 9W, the 400GBASE OSFP Optical Module offers an efficient solution for large-scale data networks that require high-density, high-speed connectivity. It supports transmission distances of 30 meters on OM3 and 50 meters on OM4 fiber cables, making it suitable for short-range connections in modern data centers. The module features an MPO-12/APC interface, ensuring seamless integration into existing fiber infrastructures.
This optical module supports the IB NDR protocol and is fully compliant with 400G Ethernet standards, providing optimal performance for both 200G and 400G interconnects. The 400GBASE OSFP SR4 optical module can be used for direct connection between two 400GBASE OSFP SR4 modules, and can also be used to branch an 800G OSFP optical module into two 400G OSFP optical modules, allowing for flexible deployment in network infrastructure.An important distinction to note is the difference between the flat top and finned top designs of the 400G optical module. The flat top version is typically used in network interface cards (NICs) or DPUs (data processing units), while the finned top version is designed for switches. Both options are available, and customers are encouraged to contact customer service for further guidance on which model best suits their application needs.
The 400GBASE OSFP Optical Module offers a high-capacity, energy-efficient solution for modern network applications, ensuring rapid and reliable data transmission in high-performance environments. Its advanced modulation technology, along with flexibility in design options, makes it an essential component for building next-generation network infrastructures.
| Brand | WHGEARLINK |
|---|---|
| Description | 400G OSFP 850nm 50m MPO-12/APC |
| Cable Type | MMF |
| Warranty | 3 Year |
| Connector | MPO |
| Operating Voltage | 3.3V |
| TX output （dBm） | -4.6~4 |
| RX Sensitivity （dBm） | -6.3 |
| Power （W） | 8.5W |
| Connector | MPO-12/APC |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| DOM | Yes |
| Networking | Ethernet, Infiniband |
| Compatible Brands | NVIDIA：MMA4Z00-NS400, NVIDIA：MMA4Z00-NS400-T, Arista：OSFP-400G-VSR4 |
What are the main categories of 400G optical transceivers?
Based on transmission distance and application scenarios, 400G optical transceivers are mainly categorized into SR8 (short-range), DR4 (medium-range), FR4 (medium-long range), and LR4 (long-range).
What are the common packaging types for 400G optical transceivers?
Common packaging types for 400G optical transceivers include QSFP-DD, OSFP, and QSFP112. Among these, QSFP-DD and OSFP are widely used due to their high density and excellent heat dissipation performance.
What are the main application areas of 400G optical transceivers?
400G optical transceivers are primarily used in data centers, high-performance computing, and communication networks, meeting the demands for high bandwidth and high-speed data transmission.
What is a QSFP-DD packaged 400G optical transceiver?
QSFP-DD (Quad Small Form-factor Pluggable Double Density) is a dual-density, four small form-factor pluggable package that supports data transmission rates up to 400Gbps, suitable for high-density network environments.
What is the transmission distance range for 400G optical transceivers?
Depending on the type, the transmission distance ranges from 100 meters (SR8) to 10 kilometers (LR4), covering the needs from short-range to long-range transmissions.
How do 400G optical transceivers meet the demands of data centers?
By providing high bandwidth and high-density connections, 400G optical transceivers support the high-speed transmission of massive amounts of data within data centers, improving overall network performance.
What role do 400G optical transceivers play in communication networks?
In communication networks, 400G optical transceivers are used to build high-capacity transmission links to meet the growing network traffic demands.
What is the power consumption of 400G optical transceivers?
The power consumption of 400G optical transceivers typically ranges from 8W to 12W, depending on the module type and application scenario.
What types of interfaces do 400G optical transceivers have?
Common interface types include MPO and LC, with the specific choice depending on the module type and application requirements.
What is the transmission rate of 400G optical transceivers?
400G optical transceivers have a transmission rate of 400Gbps, meeting the requirements for high-bandwidth applications.
What is the working temperature range of 400G optical transceivers?
The typical working temperature range is from 0°C to 70°C, though the specific range may vary depending on the module type and application scenario.
What are the dimensions of 400G optical transceivers?
The dimensions vary by packaging type. For example, the QSFP-DD package measures 90mm x 18.35mm x 8.5mm.
What transmission media do 400G optical transceivers use?
They mainly use single-mode fiber and multi-mode fiber, with the choice depending on the transmission distance and application needs.
What modulation technique is used in 400G optical transceivers?
400G optical transceivers typically use PAM4 (Pulse Amplitude Modulation with four levels) technology to improve data transmission efficiency.
How compatible are 400G optical transceivers?
Designed to comply with relevant standards, 400G optical transceivers ensure compatibility with equipment from different vendors.
How reliable are 400G optical transceivers?
Through rigorous testing and certification, 400G optical transceivers are designed to ensure stability and reliability under various environmental conditions.
What is the cost of 400G optical transceivers?
As the technology matures and production scales up, the cost of 400G optical transceivers has been gradually decreasing, leading to better cost-effectiveness.Where are 400G optical transceivers mainly used?
Data Centers: With the explosive growth in data traffic, data centers require higher bandwidth and faster transmission speeds. 400G optical transceivers meet the needs for large-scale data transmission and processing by providing high-density and high-speed connectivity.
Hot-pluggable OSFP form factor
Maximum link length of 50m on OM4 fiber with FEC
+3.3V single power supply
Power dissipation < 9W
Operating case temp Commercial: 0°C to +70 °C

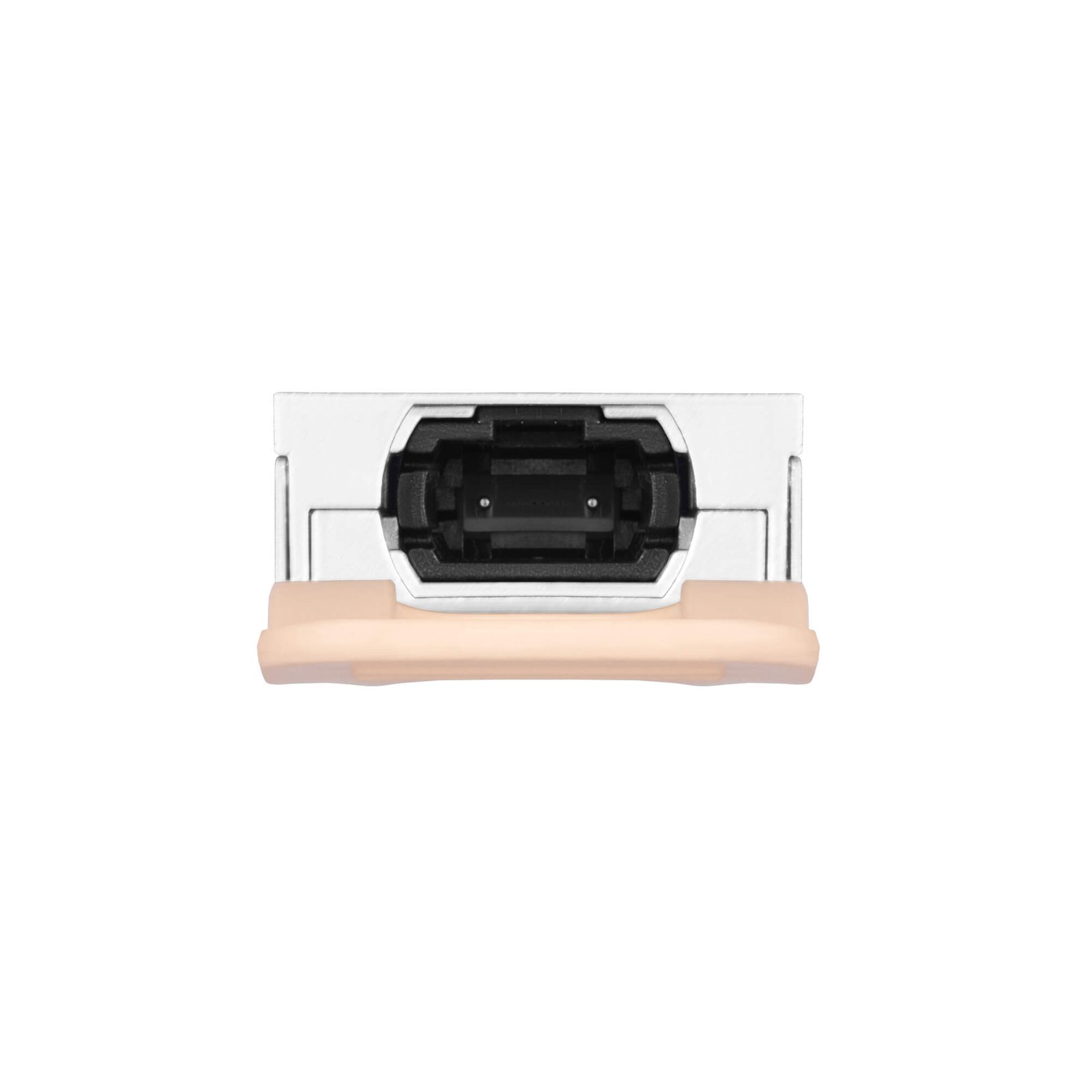

MPO-12 APC connector
RoHS compliant
Pre-FEC BER ≤ 1E-8 in the switcher equipment self-loopback test
