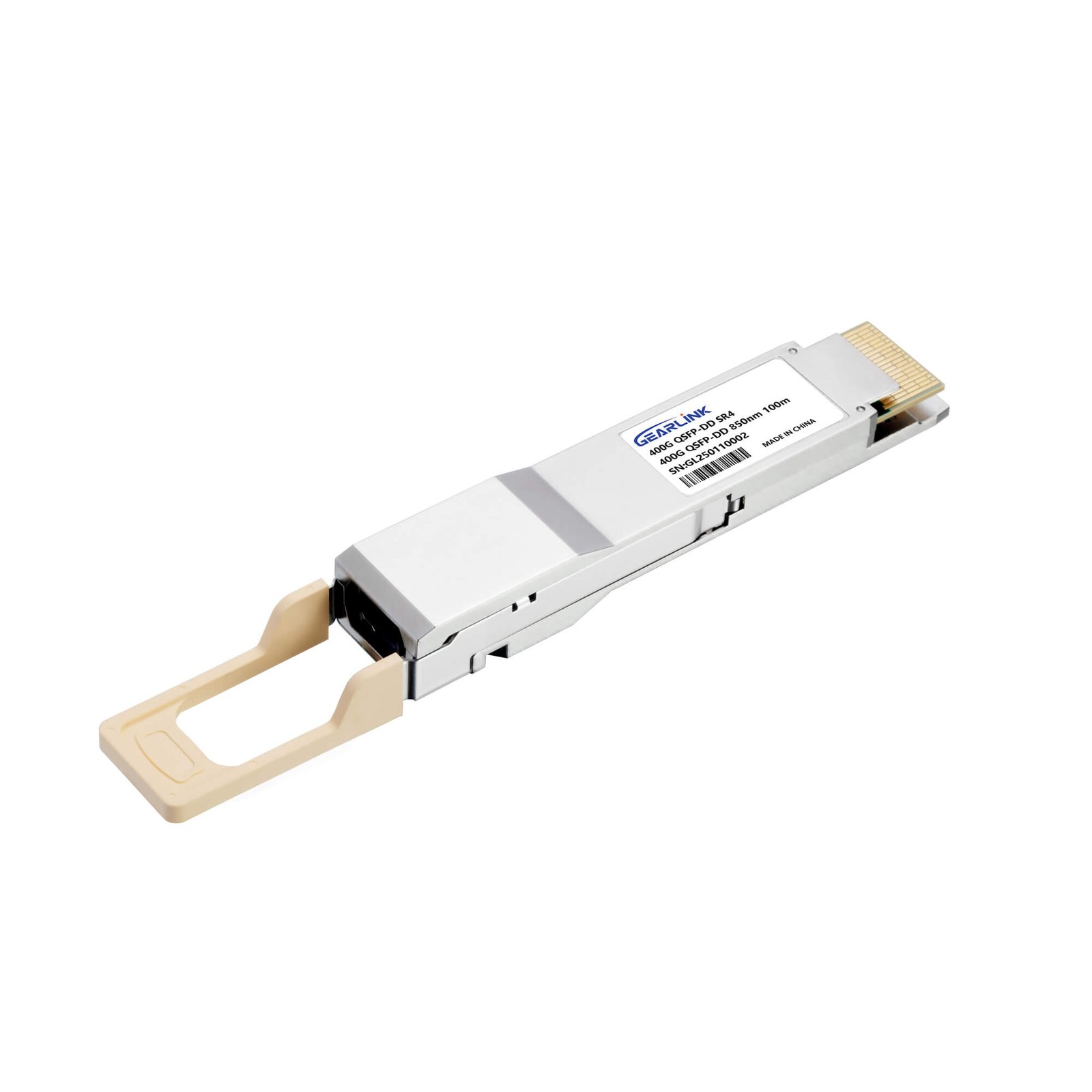

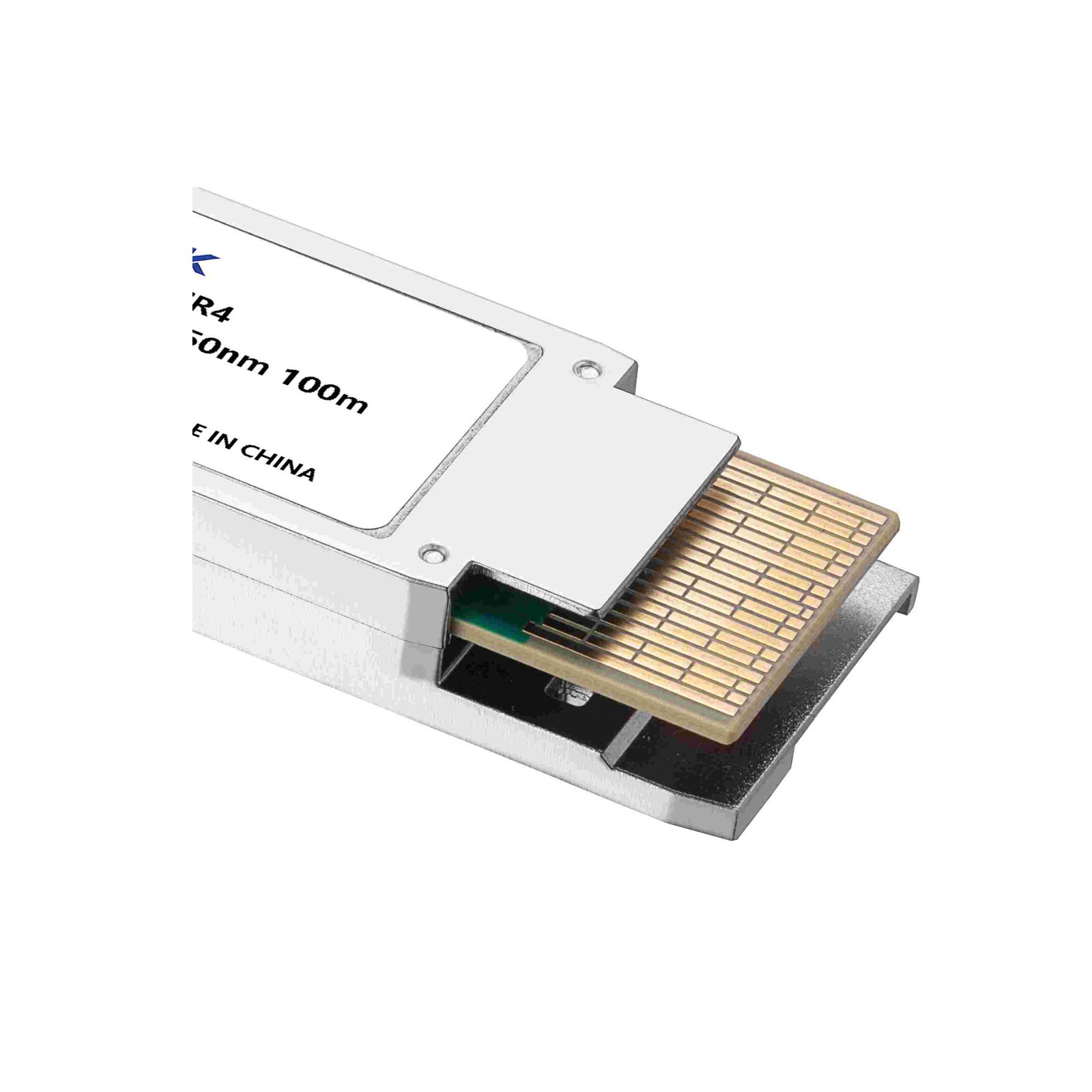

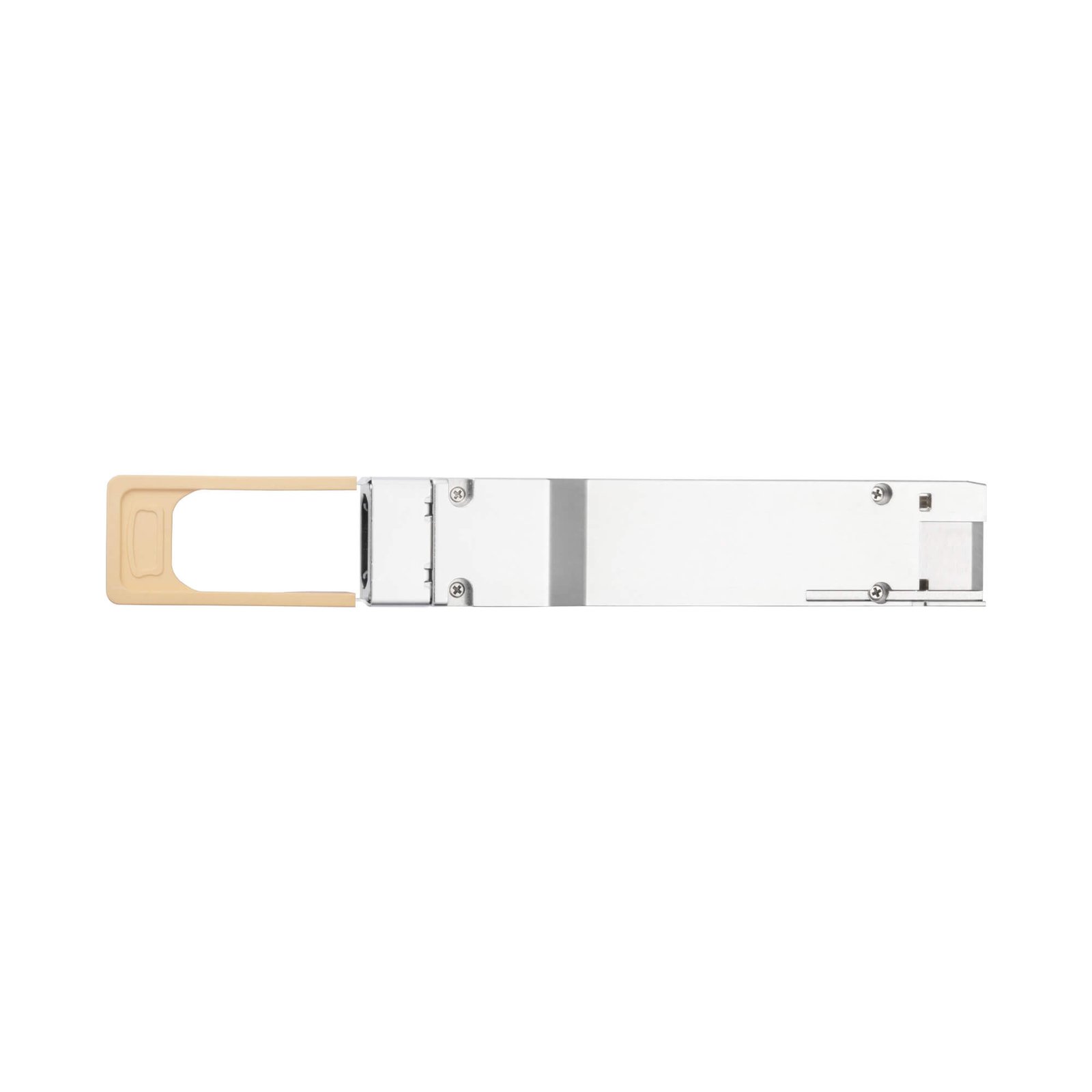

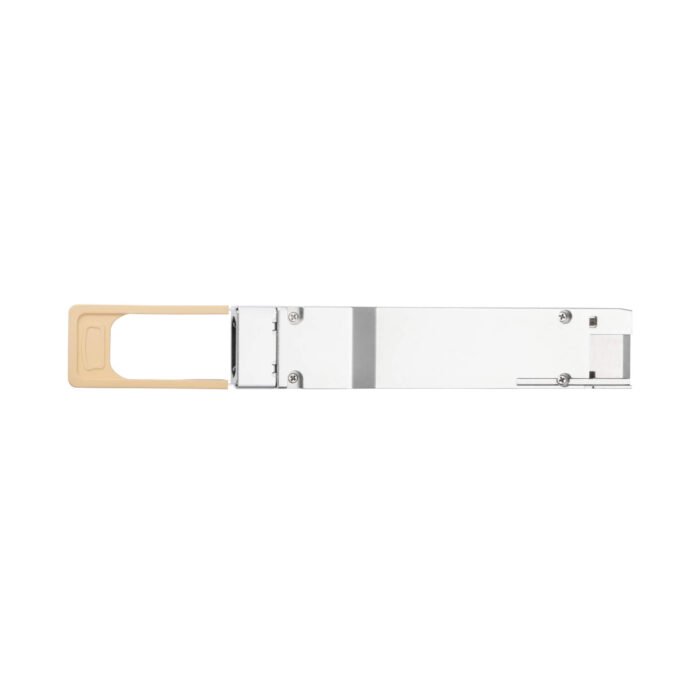

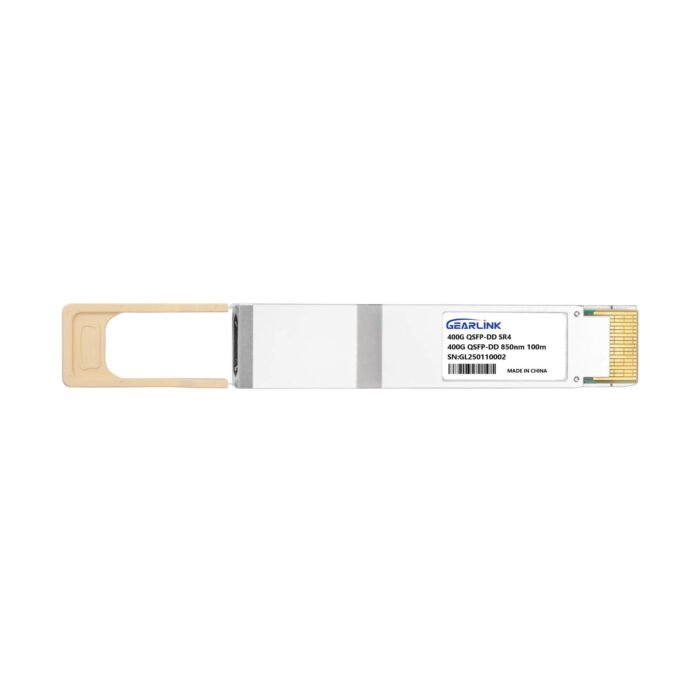

400GBASE-SR4 QSFP-DD PAM4 850nm 100m DOM MPO-12/APC MMF Ethernet Optical Transceiver Module
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The 400G QSFP-DD SR4 Optical Transceiver is a high-performance, state-of-the-art transceiver designed for ultra-high-speed, large-scale data center and enterprise network applications. It is packaged in the QSFP-DD form factor，making it ideal for applications that require a high number of ports and compact space. This optical transceiver uses 850nm wavelength for short-range transmission, ensuring fast and efficient data transfer over multimode fiber.
The 400G QSFP-DD SR4 Optical Transceiver utilizes 50G PAM4 modulation on the electrical side and 100G PAM4 modulation on the optical side. This enables efficient data transmission at 400G speeds while maintaining signal integrity and minimizing power consumption. With a power consumption of less than 8W, this optical transceiver provides an energy-efficient solution for demanding networking environments that require high bandwidth but also aim to minimize power usage. The 400G QSFP-DD SR4 Optical Transceiver supports MPO-12 (APC) interface and offers a maximum transmission distance of up to 100 meters over OM4 multimode fiber cables. It is compliant with 400G Ethernet standards, making it suitable for the latest high-speed Ethernet networks. However, it’s worth noting that the QSFP-DD form factor is not yet widely available for use in InfiniBand (IB) networks.
This optical transceiver is perfect for direct connections between switches and can also be used to connect switches to network interface cards (NICs). Additionally, it can be used in high-bandwidth applications, such as when an 800G optical transceiver is split into two 400G QSFP-DD transceivers, allowing for flexible and efficient network design.
In conclusion, the 400G QSFP-DD SR4 Optical Transceiver offers an advanced, high-performance solution for modern, high-speed networking. With its high bandwidth, low power consumption, and flexibility in various network architectures, it is a key component for next-generation data center and enterprise network deployments.
| Brand | WHGEARLINK |
|---|---|
| Description | QSFP-DD 400G 850nm 100m MPO-12/APC |
| DOM | Yes |
| Cable Type | MMF |
| Warranty | 3 Years |
| Networking | Ethernet, Infiniband |
| Compatible Brands | Cisco：QDD-400G-SR4.2-BD, Arista：QDD-400G-VSR4 |
| Operating Voltage | 3.3V |
| TX output （dBm） | -4.6~4 |
| RX Sensitivity （dBm） | -6.3 |
| Power Consumption（W） | 8W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
Hot-pluggable QSFP-DD form factor
Maximum link length of 100m on OM4 fiber with FEC
+3.3V single power supply
Power dissipation < 8W
Operating case temp Commercial: 0°C to +70 °C

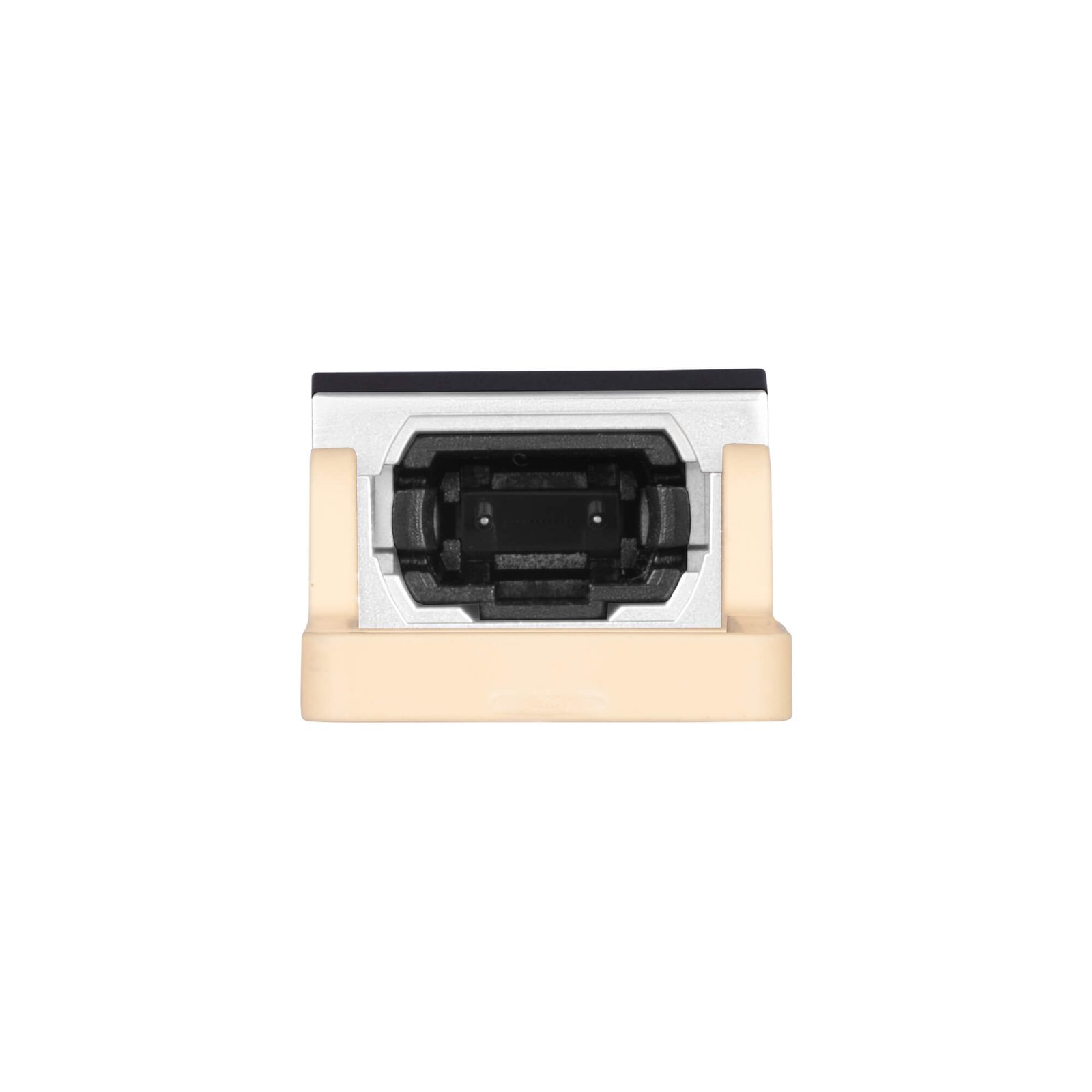

Single MPO-12 APC connector
RoHS compliant Compliant with IEEE 802.3bs standard: 400GAUI-8 electrical interface
What are the main categories of 400G optical transceivers?
Based on transmission distance and application scenarios, 400G optical transceivers are mainly categorized into SR8 (short-range), DR4 (medium-range), FR4 (medium-long range), and LR4 (long-range).
What are the common packaging types for 400G optical transceivers?
Common packaging types for 400G optical transceivers include QSFP-DD, OSFP, and QSFP112. Among these, QSFP-DD and OSFP are widely used due to their high density and excellent heat dissipation performance.
What are the main application areas of 400G optical transceivers?
400G optical transceivers are primarily used in data centers, high-performance computing, and communication networks, meeting the demands for high bandwidth and high-speed data transmission.
What is a QSFP-DD packaged 400G optical transceiver?
QSFP-DD (Quad Small Form-factor Pluggable Double Density) is a dual-density, four small form-factor pluggable package that supports data transmission rates up to 400Gbps, suitable for high-density network environments.
What is the transmission distance range for 400G optical transceivers?
Depending on the type, the transmission distance ranges from 100 meters (SR8) to 10 kilometers (LR4), covering the needs from short-range to long-range transmissions.
How do 400G optical transceivers meet the demands of data centers?
By providing high bandwidth and high-density connections, 400G optical transceivers support the high-speed transmission of massive amounts of data within data centers, improving overall network performance.
What role do 400G optical transceivers play in communication networks?
In communication networks, 400G optical transceivers are used to build high-capacity transmission links to meet the growing network traffic demands.
What is the power consumption of 400G optical transceivers?
The power consumption of 400G optical transceivers typically ranges from 8W to 12W, depending on the module type and application scenario.
What types of interfaces do 400G optical transceivers have?
Common interface types include MPO and LC, with the specific choice depending on the module type and application requirements.
What is the transmission rate of 400G optical transceivers?
400G optical transceivers have a transmission rate of 400Gbps, meeting the requirements for high-bandwidth applications.
What is the working temperature range of 400G optical transceivers?
The typical working temperature range is from 0°C to 70°C, though the specific range may vary depending on the module type and application scenario.
What are the dimensions of 400G optical transceivers?
The dimensions vary by packaging type. For example, the QSFP-DD package measures 90mm x 18.35mm x 8.5mm.
What transmission media do 400G optical transceivers use?
They mainly use single-mode fiber and multi-mode fiber, with the choice depending on the transmission distance and application needs.
What modulation technique is used in 400G optical transceivers?
400G optical transceivers typically use PAM4 (Pulse Amplitude Modulation with four levels) technology to improve data transmission efficiency.
How compatible are 400G optical transceivers?
Designed to comply with relevant standards, 400G optical transceivers ensure compatibility with equipment from different vendors.
How reliable are 400G optical transceivers?
Through rigorous testing and certification, 400G optical transceivers are designed to ensure stability and reliability under various environmental conditions.
What is the cost of 400G optical transceivers?
As the technology matures and production scales up, the cost of 400G optical transceivers has been gradually decreasing, leading to better cost-effectiveness.Where are 400G optical transceivers mainly used?
Data Centers: With the explosive growth in data traffic, data centers require higher bandwidth and faster transmission speeds. 400G optical transceivers meet the needs for large-scale data transmission and processing by providing high-density and high-speed connectivity.
