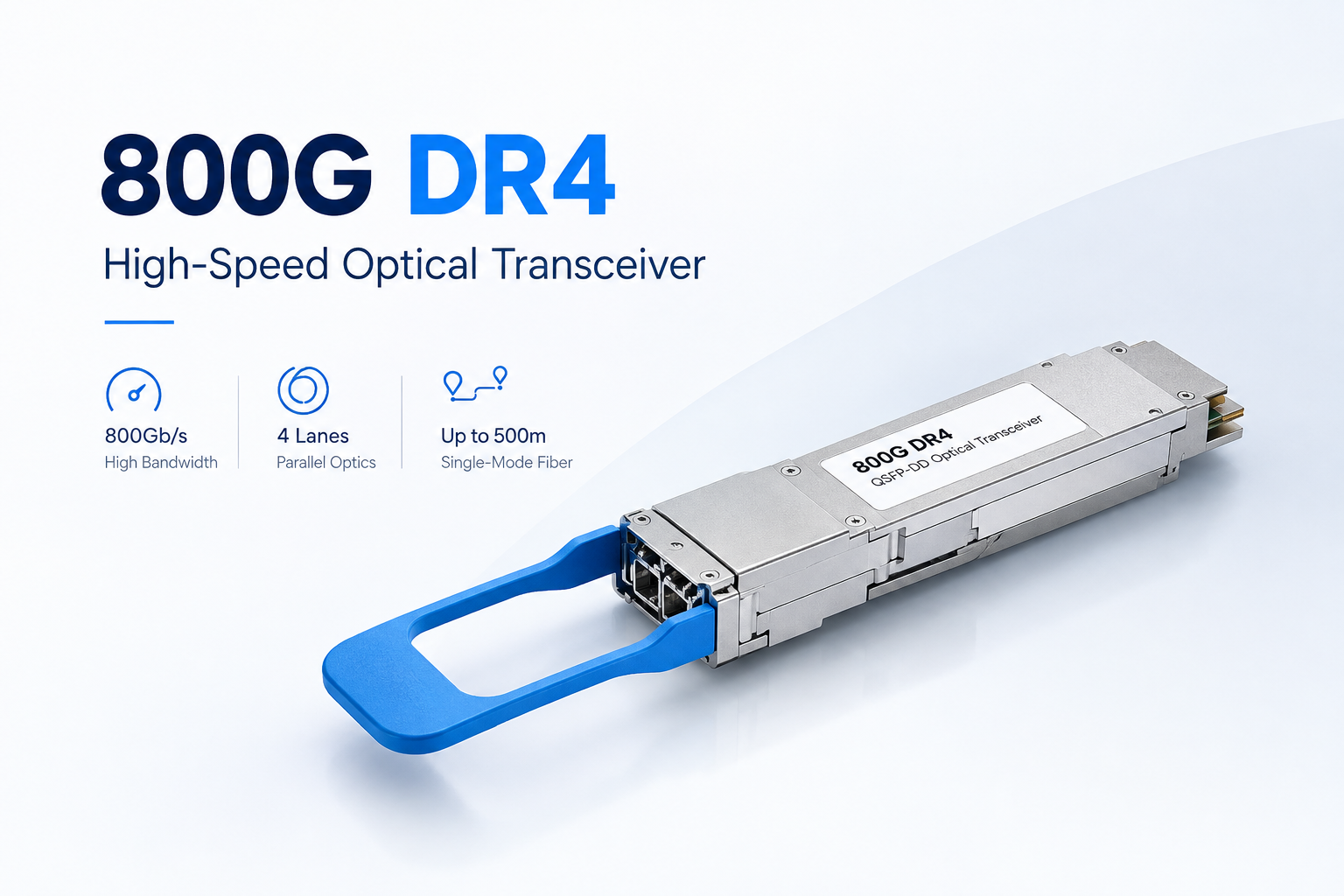

800G DR4: A Powerful Guide to Next-Generation Data Center Connectivity

As AI clusters, cloud computing platforms, and high-performance data centers continue to expand, network bandwidth has become a critical part of modern infrastructure. The 800g dr4 optical transceiver has emerged as an important solution for high-speed data center interconnects because it combines 800Gb/s bandwidth with a practical single-mode fiber reach.

Unlike earlier 400G solutions, 800G optical technology is designed to handle the rapidly growing traffic generated by GPUs, AI servers, storage systems, and distributed computing platforms. At the same time, network operators need solutions that offer high bandwidth without making cabling and deployment unnecessarily complicated.

This is where 800g dr4 technology becomes particularly interesting. It provides 800Gb/s aggregate bandwidth while using four optical lanes, making it a practical choice for short- to medium-distance connections inside modern data centers.

In this guide, we will explain how 800G DR4 works, where it is used, how it compares with other 800G technologies, and what buyers should consider before selecting a transceiver.

What Is 800G DR4?

An 800g dr4 transceiver is an 800Gb/s optical module designed primarily for short-reach single-mode fiber connections. The “800G” represents an aggregate data rate of 800 gigabits per second, while “DR4” refers to a 4-lane, 500-meter-class optical architecture based on parallel single-mode fiber.

In a typical implementation, the optical side uses four wavelengths or optical lanes, with each lane carrying approximately 200Gb/s. The four lanes are combined to provide an overall 800Gb/s transmission rate.

The basic concept can be simplified as follows:

4 optical lanes × 200Gb/s per lane = 800Gb/s total

This architecture is attractive because it increases bandwidth without requiring an extremely complex optical design.

800G DR4 Basic Specifications

Actual specifications can vary between manufacturers and platforms. Therefore, compatibility should always be confirmed before purchasing.

How Does 800G DR4 Work?

To understand 800g dr4 more easily, it helps to divide the module into its electrical and optical sections.

The host switch or server first sends high-speed electrical signals to the transceiver. Inside the module, a DSP and optical components process these signals. The electrical information is then converted into optical signals and transmitted through four single-mode fiber lanes.

At the receiving end, the process is reversed. The optical signals are converted back into electrical signals and delivered to the switch or network device.

A simplified transmission path looks like this:

Switch → Electrical Interface → DSP → Optical Engine → 4 × 200G Optical Lanes → Single-Mode Fiber → Receiver

Why Is PAM4 Used?

Traditional high-speed optical systems often relied on NRZ signaling. However, NRZ becomes increasingly difficult to scale as the required bandwidth rises.

PAM4, or four-level pulse amplitude modulation, uses four signal levels instead of two. As a result, each symbol can carry two bits of information.

This allows a higher data rate to be achieved without simply doubling the physical signaling frequency.

However, PAM4 also introduces additional signal-integrity challenges. Because the distance between signal levels is smaller, noise and distortion can have a greater impact.

Therefore, DSP technology, FEC, optical design, and host-side signal quality all become important.

800G DR4 Optical Architecture Explained

The optical architecture is one of the most important characteristics of 800g dr4.

A typical DR4 design uses four optical channels. Each channel operates at approximately 200Gb/s, creating an aggregate bandwidth of 800Gb/s.

The architecture can be represented as:

Because single-mode fiber is used, DR4 is different from many short-reach multimode solutions. Single-mode fiber provides a useful combination of reach, scalability, and infrastructure flexibility.

Furthermore, parallel optical transmission allows the total bandwidth to be distributed across multiple lanes rather than forcing a single optical channel to carry the entire 800Gb/s signal.

MPO Connectivity

MPO connectivity is commonly associated with parallel-fiber 800G applications.

An MPO-12 connector can provide multiple fiber positions within one compact connector. Depending on the optical implementation and cabling arrangement, some fibers are used for transmission while others are used for reception.

This approach can reduce the physical space required for high-density cabling.

Nevertheless, polarity and fiber mapping must be checked carefully. An incorrect polarity configuration can prevent the optical link from operating correctly.

800G DR4 vs. 800G SR8

One common question is whether 800g dr4 or 800G SR8 is better.

The answer depends mainly on fiber infrastructure, required distance, power consumption, and deployment environment.

Although both technologies provide an 800Gb/s aggregate data rate, their optical architectures are different.

For deployments that already use multimode fiber and require only short distances, SR8 can be attractive.

On the other hand, 800g dr4 is often more suitable when single-mode fiber is preferred or when a longer reach is required within the data center.

800G DR4 vs. 800G FR4

Another important comparison is between 800g dr4 and 800G FR4.

Both are designed for 800Gb/s networking, but their optical structures are quite different.

DR4 generally uses four parallel optical lanes. FR4, by contrast, uses multiple wavelengths over a duplex single-mode fiber connection.

The key difference is therefore not bandwidth. Both provide 800Gb/s.

Instead, the major difference is how the optical signals are transported.

For high-density short-reach applications, DR4 can provide a straightforward architecture. For applications where duplex LC fiber and longer reach are more important, FR4 may be a better fit.

Where Is 800G DR4 Used?

The growth of AI infrastructure is one of the major reasons why 800g dr4 technology has attracted attention.

Modern AI clusters can contain thousands of GPUs. These GPUs exchange enormous amounts of data during model training and inference. As a result, the network connecting the computing nodes must provide very high bandwidth and low latency.

AI and GPU Clusters

AI servers frequently communicate with other servers through high-speed Ethernet or InfiniBand networks.

An 800Gb/s link can significantly increase the bandwidth available between switches and computing systems.

For example, a large AI cluster may require high-speed connections between:

GPU servers

Top-of-rack switches

Spine switches

Leaf switches

Storage systems

Network fabrics

In these environments, 800g dr4 can provide a practical optical connection for high-bandwidth links.

Cloud Data Centers

Cloud providers continuously increase network capacity because users are consuming more video, AI services, SaaS applications, databases, and storage resources.

Consequently, 400G links are increasingly being supplemented or replaced by 800G connections in high-capacity network architectures.

High-Performance Computing

HPC systems also generate substantial east-west traffic.

Scientific computing, simulation, financial modeling, weather forecasting, and engineering workloads can all require fast communication between computing nodes.

Therefore, high-speed optical transceivers can become an important part of the overall HPC network.

800G DR4 and Data Center Cabling

Cabling is often overlooked when organizations evaluate high-speed optical modules.

However, at 800Gb/s, fiber infrastructure becomes extremely important.

A deployment using 800g dr4 normally requires careful consideration of:

Fiber type

Connector type

Fiber polarity

Fiber length

Insertion loss

Return loss

Bend radius

Patch-panel design

Optical lane mapping

Maintenance requirements

A small cabling error can result in a link failure even when the transceiver itself is working correctly.

Single-Mode Fiber Advantages

Single-mode fiber is widely used for high-speed networking because it provides excellent transmission performance over longer distances.

For DR4 applications, this is especially useful because the same general fiber infrastructure can support a broad range of optical technologies.

For 800g dr4, OS2 single-mode fiber is generally the appropriate choice.

Power Consumption and Thermal Design

Power consumption becomes increasingly important as data center speeds increase.

An 800G optical module contains high-speed electrical and optical components, DSP functions, drivers, receivers, and thermal management structures. Therefore, power consumption can be significantly higher than that of older-generation modules.

For large deployments, even a small difference in power per transceiver can have a meaningful effect.

For example:

Power per module × Number of modules = Total optical power requirement

If a data center deploys thousands of optical modules, the resulting power consumption also creates additional cooling requirements.

Therefore, buyers should not evaluate an 800g dr4 module only by its purchase price. Power consumption, thermal performance, reliability, and long-term operating costs should also be considered.

Compatibility Considerations for 800G DR4

Compatibility is one of the most important purchasing considerations.

An optical module may meet the required optical specifications but still require validation with the target switch.

Before purchasing an 800g dr4 module, check the following:

Different network platforms may use different firmware behavior or module validation procedures. Therefore, a module should be tested with the actual network equipment whenever possible.

How to Choose the Right 800G DR4 Module

Selecting the right product is not simply a matter of choosing the highest bandwidth.

Instead, buyers should first define the network environment.

1. Confirm the Switch Interface

Start with the exact switch model and port type.

The same 800Gb/s optical specification may be available in different form factors. The host platform must support the selected module.

2. Confirm the Distance

If the link is less than a few hundred meters, DR4 can be an excellent option.

However, if the distance exceeds the typical DR4 operating range, a longer-reach technology such as FR4 or another solution may need to be considered.

3. Confirm the Fiber Infrastructure

Determine whether the existing cabling uses:

OS2 single-mode fiber

OM3 multimode fiber

OM4 multimode fiber

MPO connectors

LC connectors

This information can quickly narrow down the suitable module type.

4. Check FEC Requirements

PAM4 transmission normally relies on forward error correction to maintain reliable communication.

Therefore, the switch and transceiver should be evaluated as a complete system rather than as separate components.

5. Evaluate Power and Temperature

High-speed optical modules generate heat.

For dense 800G deployments, verify the module’s power consumption and operating temperature range. This is particularly important in high-density switch environments.

800G DR4 Deployment Example

Consider a data center that needs to connect two high-performance switches located approximately 300 meters apart.

The network requires:

800Gb/s bandwidth

Single-mode fiber

High-density cabling

Low deployment complexity

Reliable operation

Standardized optical interfaces

In this situation, 800g dr4 can be a strong candidate.

A simplified deployment would look like this:

800G Switch A → 800G DR4 → MPO Single-Mode Fiber → 800G DR4 → 800G Switch B

Four optical lanes carry the traffic between the two devices.

Because the required distance is within the typical DR4 range, there is no need to use a much longer-reach optical design simply to satisfy the bandwidth requirement.

This can help keep the architecture straightforward.

800G DR4 vs. Other 800G Solutions

The 800G ecosystem includes several optical technologies, and each one has a specific purpose.

The best choice depends on the required distance, cabling architecture, switch compatibility, power budget, and overall network design.

Consequently, there is no single 800G optical module that is ideal for every application.

Benefits and Limitations of 800G DR4

Like every optical technology, 800g dr4 has both advantages and limitations.

Main Benefits

High bandwidth:
800Gb/s provides a significant increase over 400G networking.

Practical reach:
A typical reach of up to 500 meters makes the technology useful for many data center environments.

Single-mode fiber:
SMF provides strong scalability and supports future high-speed network upgrades.

Parallel optical architecture:
Four 200G optical lanes provide a relatively clear path to 800Gb/s.

Suitable for AI networking:
The high bandwidth makes DR4 attractive for GPU and AI clusters.

Potential Limitations

Higher power:
800G modules generally require more power than lower-speed generations.

More demanding signal integrity:
PAM4 requires careful control of electrical and optical performance.

Cabling complexity:
MPO-based parallel fiber requires correct polarity and lane mapping.

Higher module cost:
Advanced optical components and DSP technology can increase the initial cost.

For this reason, DR4 should be selected based on the complete network architecture rather than bandwidth alone.

Future of 800G DR4 Technology

The demand for 800G connectivity is expected to continue as AI computing and data center traffic grow.

At the same time, the optical industry is moving toward even higher speeds, including 1.6T networking.

Nevertheless, 800G will remain important because network upgrades normally happen in stages. Many data centers need a practical transition between 400G and future 1.6T infrastructure.

In this transition, 800g dr4 provides a useful balance between bandwidth, reach, optical complexity, and deployment practicality.

Furthermore, improvements in DSP efficiency, laser technology, optical packaging, and thermal management are expected to improve the overall performance of high-speed optical modules.

Final Thoughts on 800G DR4

The move toward 800Gb/s networking is being driven by AI, cloud computing, high-performance computing, and rapidly increasing data center traffic.

Within this ecosystem, 800g dr4 offers a practical solution for short-reach, high-bandwidth single-mode fiber connections. Its four-lane 200Gb/s architecture provides 800Gb/s aggregate bandwidth while keeping the optical design relatively straightforward.

For data center operators, the most important factors are not only speed but also reach, fiber infrastructure, power consumption, thermal performance, FEC behavior, and switch compatibility.

Therefore, before selecting an 800G module, it is recommended to evaluate the complete link, including the host equipment, optical transceiver, fiber, connectors, and network configuration.

When these factors are properly matched, 800G DR4 can provide a reliable foundation for the next generation of high-performance data center networks.

Frequently Asked Questions About 800G DR4

1. What is 800g dr4?

800g dr4 is an 800Gb/s optical transceiver technology that typically uses four 200Gb/s optical lanes over single-mode fiber. It is mainly designed for high-speed data center connections with a typical reach of up to 500 meters.

2. What fiber does 800g dr4 use?

800g dr4 normally uses single-mode fiber, particularly OS2 fiber. Parallel optical lanes are commonly connected through an MPO interface, depending on the specific module and cabling design.

3. What is the typical reach of 800g dr4?

The typical reach of 800g dr4 is up to 500 meters. However, actual performance depends on the transceiver specification, fiber quality, connector loss, and the complete optical link budget.

4. What is the difference between 800g dr4 and 800G SR8?

800g dr4 normally uses four 200Gb/s optical lanes over single-mode fiber, while 800G SR8 generally uses eight 100Gb/s lanes over multimode fiber. DR4 is therefore better suited to applications requiring single-mode fiber and greater reach.

5. Is 800g dr4 suitable for AI data centers?

Yes. 800g dr4 is well suited to many AI and high-performance data center applications because it provides 800Gb/s aggregate bandwidth and a practical single-mode fiber reach. However, switch compatibility, FEC configuration, power consumption, and cabling should be checked before deployment.
